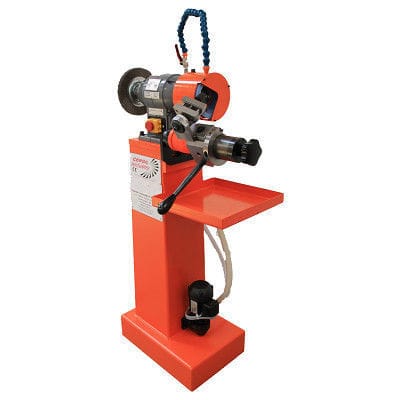

Tool grinding machine

manualhigh-speedcompact

Product overview
The manual chaser grinding machine is designed to quickly sharpen thread chasers (cutting combs) and maintain correct cutting angles according to the hardness of the materials to be threaded. It is a compact, easy-to-operate manual machine suitable for workshop use.

Main features

• Wheel rotation speed: 2800 rev/min.
• Wheel drive motor: 0.75 kW (electrical).
• Watering pump: 0.17 kW.
• Integrated cooling system for the chaser.
• Brush for removing grinding burrs and adjusting thread diameter.
• Dimensions: 1450 (h) x 800 x 400 mm.
• Weight: 80 kg.

Description
Sharpening is performed with a special fine-grained cup wheel suitable for HSS (high-speed steel) tools. The wheel is driven by an electric motor of 0.75 kW. A tool support guides the chaser in front of the wheel, enabling simple, rapid and precise sharpening.
The machine includes an integrated cooling system to prevent overheating of the chaser during sharpening. After grinding, an integrated brush removes the grinding burr to allow faster adjustment of the thread diameter.
The grinding machine can be adapted to sharpen chasers of any brand.

Strengths

• Easy operation: simple manual support and intuitive handling for precise sharpening.
• Optimized grinding: fine-grained cup wheels designed for HSS avoid overheating and enable efficient material removal.
• Versatility: adjustable to accommodate chasers from different manufacturers.

Technical specifications

• Wheel type: special fine-grained cup wheel for HSS steels.
• Wheel drive motor: 0.75 kW (electrical).
• Rotation speed: 2800 rev/min.
• Cooling: integrated cooling system for the chaser.
• Additional equipment: brush to remove grinding burrs for thread diameter regulation.
• Watering pump: 0.17 kW.
• Dimensions: 1450 (h) x 800 x 400 mm.
• Weight: 80 kg.
• Operation: manual sharpening with guided tool support for precise movement.
• Compatibility: can sharpen chasers of any brand.
