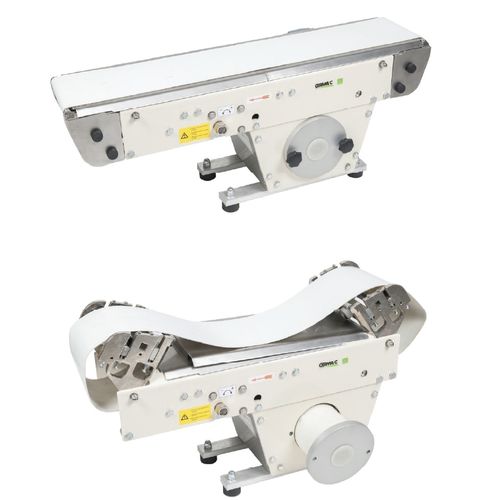

Belt conveyor

horizontalstraightfor the food industry

CONVENTIONAL HYGIENIC BELT CONVEYOR FOR UNPACKAGED PRODUCTS The design of this straight conveyor has incorporated the simplification of belt replacement as a priority. This results in greater efficiency and speed for each action: removal from above by folding down two, pivoting ends located upstream and downstream; removal of pulleys and back-flexing rollers; removal of removable slider beds and disengagement of the vulcanized drive drum (O arrangement principle). The specific benefits of this conveyor are: centralization of belt tension in manual mode and in automatic mode, easier cleaning of the conveyor as a whole, very quick belt replacement, in compliance with CE and FDA regulations, highly suitable for the food, pharmaceutical, and cosmetic industries. Practical information: 150 mm to 1600 mm usable belt widths for conveyor lengths from 800 mm to 80,000 mm; specific dimensions upon request, rotating line-ends with 7 mm, 14 mm or 43 mm diameter depending on the dimensions of the products to convey, Options and finishings: sprayed epoxy paint in suited RAL color, fully stainless steel and washable 304 L version, belt scraper and recuperation bin, automatic belt readjustment and acute diversion control, incremental sensor, asynchronous geared motor, servomotor, etc.
