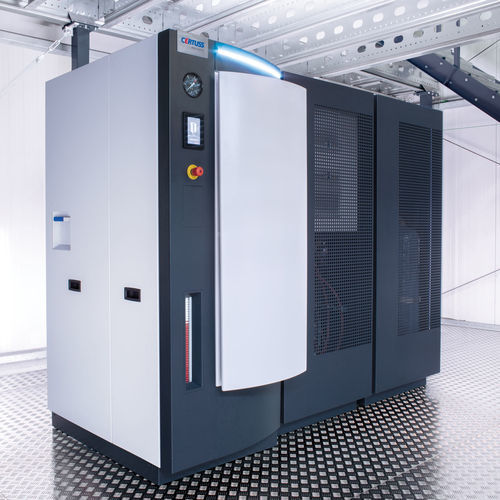

Electric steam generator EMX

purecompact

Product overview
The EMX series is a family of electric steam generators designed to deliver higher steam output in a smaller footprint. Models provide continuously adjustable steam output from 10 to 320 kg/h. Electric heating uses stainless steel heating rods for fast heat-up; full steam output is available within 3–5 minutes after start-up. Units include a built-in feed water tank and feed water pump. Systems support fully automatic 72-hour operation, modulating power control to match demand, high process reliability and remote maintenance. Optional stainless-steel wet parts enable pure/culinary steam. Multiple units can be cascaded for higher or fluctuating requirements.

Advantages of the new Generation E

• Continuously adjustable steam output: 10–320 kg/h
• Full steam available in 3–5 minutes after start-up
• Electric heating with stainless steel heating rods
• Fully automatic operation up to 72 hours
• Modulating power control and remote maintenance capability

Highlights

• Compact, space-saving electric steam boiler system
• Built-in feed water tank and feed water pump for compact installation
• Suitable for installation and operation in workrooms
• Energy-efficient operation via modulating steam pressure control (model dependent)
• Cascade connection of several ELEKTRO/EMX units for higher or fluctuating demand (examples up to ~640 kg/h)
• Optional stainless-steel wet parts for pure/culinary steam applications
• Human–machine interface (One‑View Control) with LED status and remote service support

Technical data (selected)
Model: E 6 M — E 72 M | E 10 MX — E 320 MX
Steam output: 8 — 97 kg/h | 10 — 320 kg/h
Heat output: 6 — 72 kW | 8 — 240 kW
Electrical connection value: 6,8 — 73,8 kW | 8,75 — 240,75 kW
Height / Width / Depth: 1.850 / 880 / 680 mm | 1.900 / 774 / 1.150 mm
Min. / Max. operating pressure: 3,5 / 3,5 — 11 bar | 3,0 – 3,5 / 3,0 — 14,5 bar
Max. permissible overpressure: 6 / 10 / 12 bar | 4 / 6 / 10 / 12 / 13 / 16 bar

Technical specifications

• Series: EMX (electric steam generators)
• Nominal steam output (EMX): 10–320 kg/h, continuously adjustable
• Heating time: full steam output in approx. 3–5 minutes after start-up
• Heating technology: electric heating elements with stainless steel heating rods
• Built-in feed water tank and feed water pump (compact configuration)
• Control: modulating power adjustment, fully automatic 72-hour operation, remote maintenance capable
• Cascade capability: several units can be connected for higher or fluctuating demands (examples up to ~640 kg/h)
• Optional stainless-steel wet parts for pure/culinary steam generation
• Dimensions, pressures and electrical values are model-dependent (see technical table)
