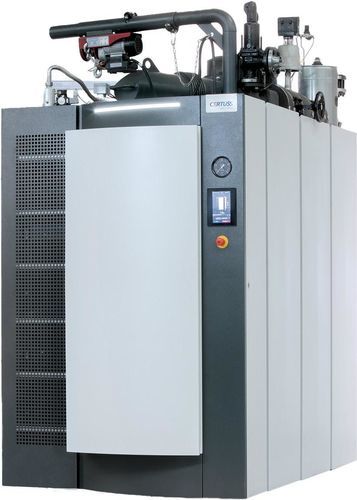

Natural gas steam generator UMX U1500MX – U2000MX

hybridgaslow-NOx

Overview
The UMX is a newly developed gas-fired steam boiler engineered for operation on natural gas, LPG or dual-gas configurations. It reaches full steam capacity within 3–5 minutes after start-up and provides continuous modulation from 20% to 100%. The design targets ultra-low NOx emissions, high thermal efficiency and simplified maintenance through integrated components.

Key features

• Continuous modulation 20%–100%
• Operable on natural gas (NG), LPG or dual-fuel modes
• Ultra-low NOx emissions, well below regulatory limits
• Integrated water pump, gas filter, hot-water filter, slide valve and steam dryer
• One View Control for continuous remote monitoring
• Service-oriented design with integrated crane, service ladder and optimized access

Advantages

• Rapid readiness: full steam output 3–5 minutes after start-up with precise output control via continuous modulation
• Environmentally efficient: ultra-low NOx and high efficiency reduce emissions and fuel consumption
• Easy maintenance: compact integration of pump, filters, slide valve and steam dryer plus dedicated lifting and access features

Product data overview (table)
Model | 1500 | 1800 | 2000
Steam output | 1500 kg/h | 1800 kg/h | 2000 kg/h
Heat output | 984 kW | 1181 kW | 1312 kW
Max. rated thermal input | 1091 kW | 1309 kW | 1454 kW
Height / Width / Depth | 2632 / 1435 / 2442 mm | 2632 / 1435 / 2442 mm | 2632 / 1435 / 2442 mm
Min. / Max. operating pressure | 6/8 – 29 bar | 6/8 – 29 bar | 6/8 – 29 bar
Max. permissible overpressure | 10 – 32 bar | 10 – 32 bar | 10 – 32 bar

Characteristics / Technical specifications

• Series: UMX
• Available models: U1500MX, U1800MX, U2000MX (steam output 1500–2000 kg/h)
• Heat output variants: 984 kW / 1181 kW / 1312 kW
• Max. rated thermal input variants: 1091 kW / 1309 kW / 1454 kW
• Operating pressure (min./max.): approx. 6/8 – 29 bar
• Max. permissible overpressure: 10 – 32 bar
• Dimensions (H / W / D): 2632 / 1435 / 2442 mm (listed models)
• Combustion: natural gas (NG), LPG, dual-fuel option
• Heating / ready time: 3–5 minutes
• Modulation range: continuous 20%–100%
• Integrated equipment: water pump, gas filter, hot-water filter, slide valve, steam dryer
• Control & monitoring: One View Control for continuous remote monitoring
• Service features: integrated crane, service ladder and optimized access for maintenance
