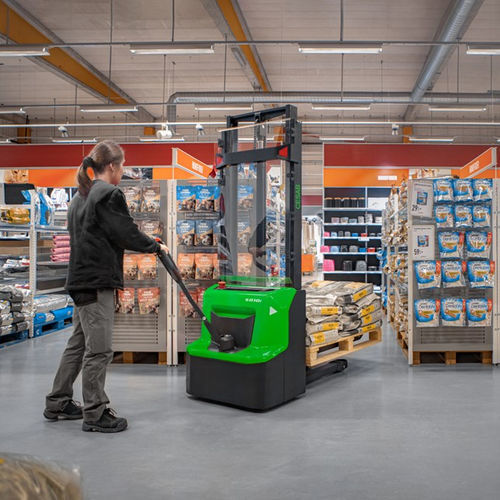

Materials handling stacker truck S010i
electricmanualwalk-behind

materials handling stacker truck
materials handling stacker truck
Add to favorites
Compare this product


Characteristics

Energy
electric, manual
Operator
walk-behind
Voltage
24 V
Applications
pallet, for materials handling, battery
Other characteristics
compact
Carrying capacity

1,000 kg
(2,204.6 lb)

Lifting height

2,900 mm, 3,600 mm
(114.17 in, 141.73 in)

Height of mast when lowered

1,930 mm, 2,280 mm
(76 in, 89.8 in)

Height of mast when raised

3,337 mm, 4,037 mm
(131.38 in, 158.94 in)

Overall width

800 mm
(31.5 in)

Overall length

1,710 mm
(67.3 in)

Turning circle radius

1,350 mm
(53.1 in)

Battery capacity

60 Ah

Travel speed

4.2 km/h, 4.5 km/h
(2.61 mph, 2.8 mph)

Lifting speed

0.11 m/s, 0.16 m/s
(0.361 ft/s, 0.525 ft/s)

Weight

565 kg, 594 kg
(1,245.61 lb, 1,309.55 lb)

Description

Mechanise your material handling! Take the first step of mechanisation of your operation with the CESAB S010i powered stacker. Manual handling is the biggest cause of muscular injuries in the workplace, these types of injuries account for more than for 1/3 of all work-related illnesses. The S010i, CESAB closes the gap between manual or semi-manual stackers and the more expensive electric stackers. Exceptionally compact, the CESAB S010i offers better ergonomics and faster pallet handling at a very affordable price. The Li-ion battery with the build-in charger assures maximum availability as the truck can be charged at any wall-outlet With the launch of the S010i, CESAB offers an economic solution to mechanise basic material handling. Manual handling is the biggest cause of muscular injuries in the workplace, these types of injuries account for more than for 1/3 of all work-related illnesses. With the S010i, CESAB closes the gap between the manual or semi-manual stackers and the more expensive powered pallet stackers The CESAB S010i proposes all the advantages of a full-size stacker: automatic drive speed reduction above 300 mm lift height and the stacker automatically reduces speed while cornering. Maximum safety during operation! Furthermore, a soft stop when the mast reaches the maximum lift height avoids mast swing. Comprehensive indication of the residual capacities on the mast beam assures that the user will not exceed the maximum allowed load when stacking. The 24V-60Ah Li-ion battery assures outstanding autonomy. The built-in charger charges the battery in under three hours using any wall outlet.
