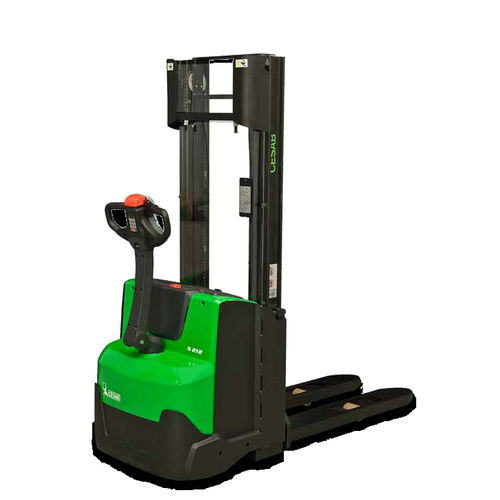

Compact stacker truck S200 series
electricwith rider platformwalk-behind

compact stacker truck
compact stacker truck
compact stacker truck
compact stacker truck
compact stacker truck
compact stacker truck
compact stacker truck
compact stacker truck
compact stacker truck
compact stacker truck
compact stacker truck
compact stacker truck
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
with rider platform, walk-behind
Voltage
24 V
Applications
for pallet, for materials handling
Other characteristics
compact
Carrying capacity

Max.: 2,000 kg
(4,409.2 lb)

Min.: 800 kg
(1,763.7 lb)

Lifting height

Max.: 5,400 mm
(212.6 in)

Min.: 600 mm
(23.62 in)

Battery capacity

Max.: 500 Ah

Min.: 134 Ah

Travel speed

6 km/h
(3.73 mph)

Description

Compact powered stacker trucks The CESAB S200 powered stacker range has been designed for medium-intensity applications; very simple and safe to use. The 5-point chassis design assures perfect stability and control even on ramps and uneven floors. The centrally placed tiller arm and the small turning radius makes manoeuvring in both directions easy. The ergonomic tiller arm head combines all functions for drive, lifting and lowering while the low body design and wide-view mast allow a good and save view on the forks. The PIN-code access allows individual parameters settings and can be configured so it adapts the truck to the user’s drive abilities or specific restrictions in working areas. It also protects against unauthorised use of the truck. The big safety button on the top prevents the user getting stuck between the truck and an obstacle as it immediately reverses drive direction when applied When it comes to the needs of stacker operations, the CESAB S200 powered stacker range means business. With its compact design that includes a low and rounded chassis with a centrally mounted tiller arm, the CESAB S200 range delivers excellent manoeuvrability for truly effortless pallet handling. From retail to wholesale, manufacturing to distribution, the CESAB S200 range offers a flexible solution for all stacker applications along with the option of a flip-up platform and unique tiller arm if your application requires longer travel distances (1.0-1.4t models).
