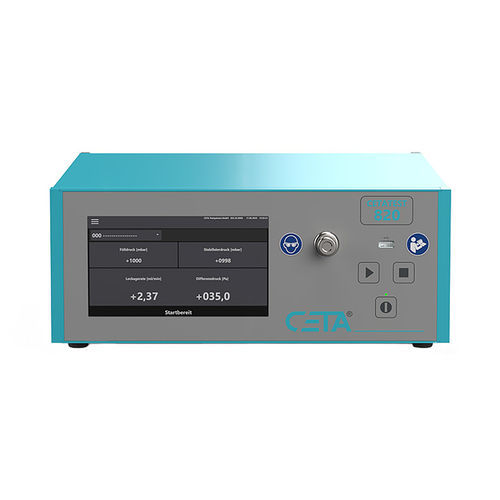

Differential pressure decay leak tester CETATEST 820

for empty containersfor the plastics industryfor empty aerosol cans

The CETATEST 820 is a high-quality and cost-effective differential pressure test device for leak testing of directly fillable products using compressed air. The differential pressure method is based on the comparison of the pressures in the test part volume with the pressure in a leak-tight reference volume. This test method is used for reliable detection of small pressure losses and low leakage rates. The CETATEST 820 can be used in automated production processes for leak testing within the cycle time of the production line. It is operated via the 7-inch touch screen with intuitive user interface. Separate start/stop buttons ensure operating safety even in harsh industrial environments. The memory stores 100,000 measurement results and 64 test programs.


Pressure sensors
Gauge pressure sensor, differential pressure sensor


Pressure ranges
1 bar, -1 bar/1 bar, -1 bar/10 bar, 1 bar, 10 bar


Measurement range
±500.0 Pa (internal resolution: effektiv 0.01 Pa)


Result units
Pa, hPa, PSI, Pa/s, hPa/s, PSI/s, mbar*l/s, ml/min, ml/
h, l/min, l/h, mmHg, Torr, mmWs


Test mode
Pressure decay
