Locomotive bogie PENNSYLVANIA

standard gauge

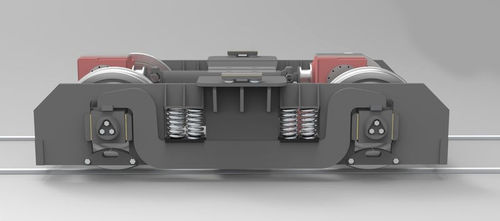

CFD's Pennsylvania bogie has all the modern evolutions with cartridge axleboxes, guided by manganese steel slides inside the chassis. The bogie also has tread brake units for service and parking braking, which can be equipped with anti-locking solenoid valves and dedicated sensors. Its 2.5m wheelbase and the structure of its frame allow it to be equipped with electric motors or conventional traction solutions using axles and cardan shafts connected to permanent magnet motors or a gearbox A wheel flange lubrication system can be added to limit wheel wear in curves. Damping on the axle box The Pensylvania bogie is characterized by a large mass in direct connection with the rail, in particular the balancers resting on top of the axle boxes. CFD has a new option on the Pennsylvania range in the form of shock absorbing elements at the connection between the axle box and the longitudinal beams to reduce the forces exerted by the unsprung elements. These are 100% metal cushions that do not creep over time and provide excellent filtration of shocks and low frequencies. Its installation requires a special design of the pendulums and axle box. The bogie frame has an H-shape without cross braces and rests on a single suspension stage with coil springs, which are themselves mounted on longitudinal balancers. The bogie body connection is ensured by a toe-cap and smoothing rails. The support is located at the bottom of the bogie to prevent the bogies from pitching up during take-off of heavy loads. The connection between the drive axle gearboxes is then made by a cardan shaft passing over the support plate in the vehicle chassis. Application Locomotives Special vehicles
