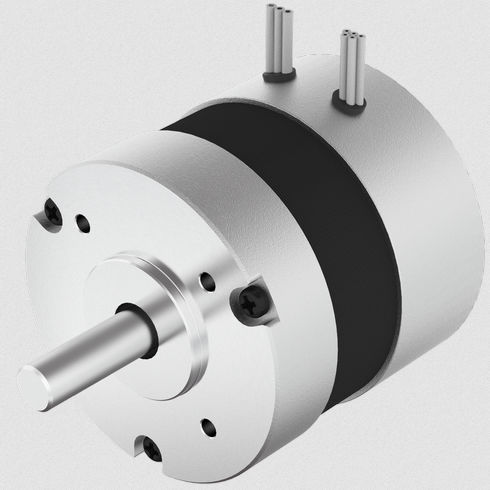

Brushless motor FL57BL(S) seriesDC36 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- brushless, DC
- Voltage
- 36 V
- Configuration
- permanent magnet, small
- Protection class
- IP40
- Applications
- industrial
- Other characteristics
- high-efficiency, high-power, standard
- Power
46 W, 99 W, 138 W, 184 W
(0.06 hp, 0.13 hp, 0.19 hp, 0.25 hp)- Intensity
Max.: 21 A
Min.: 6.5 A
- Torque
Max.: 0.44 Nm
(0.324527 ft.lb)Min.: 0.11 Nm
(0.081132 ft.lb)- Rotational speed
4,000 rpm
(25,132.7412 rad.min-1)- Diameter
57 mm
(2.24 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: -20 °C
(-4 °F)
Description
Standard BLDC motor
57mm DC brushless motor, circular body, two types of circular and square end cover designs,
Catalogs
FL57BL(S) SERIES
2 Pages
