TIG welding torch WP-27water-cooled
Add to favorites
Compare this product
Characteristics
- Technique
- TIG
- Cooling mechanism
- water-cooled
- Intensity
500 A
Description

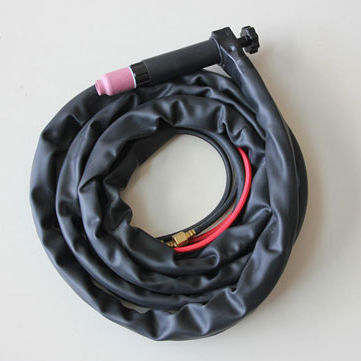

TIG WP-27 Water Cooled Tungsten Argon Arc Welding Torch
RatingWater Cooled 500A, Duty Cycle : 60%
Rear ConnectorM12*1, 1/4G, 7/8''-14UNF RH, 5/8''-18 UNF RH
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box
Collet
57N47Collet Dia.2.4mm
57N48Collet Dia.3.2mm
57N49Collet Dia.4.0mm
57N50Collet Dia.4.8mm
57N51Collet Dia.6.4mm
Alumina nozzle/ Ceramic Nozzle
57N75Std. Ceramic Cup Dia. 9.6mm
57N74Std. Ceramic Cup Dia. 12.8mm
53N88Std. Ceramic Cup Dia. 16mm
53N87Std. Ceramic Cup Dia. 19.2mm
Gas Lens Collet Body
49V24Gas Lens Body Dia. 2.4mm
49V25Gas Lens Body Dia. 3.2mm
49V26Gas Lens Body Dia. 4.0mm
49V27Gas Lens Body Dia. 4.8mm
49V28Gas Lens Body Dia. 6.4mm
CONSUMABLES PARTS
WP-27AMachine torch body 9''
WP-27BMachine torch body 20''
