TIG welding torch HR-50Wwater-cooledAC/DC
Add to favorites
Compare this product
Characteristics
- Technique
- TIG
- Cooling mechanism
- water-cooled
- Other characteristics
- AC/DC
- Intensity
500 A
Description

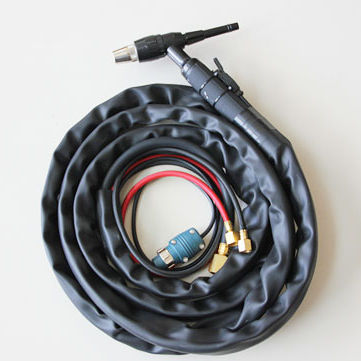

TIG HR-50W Water Cooled Tungsten Argon Arc Welding Torch
Rating500A DC, 100％ Duty Cycle, Tungsten Diameter: 1.6-6.4mm
Rear Connector9/16''-18UNF, 7/8''-14UNF, 5/8''-18UNF
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box
CONSUMABLES PARTS
1. HR-50W01Torch body
2. HR-50W02Back Cap
3. HR-50W03Connector for water jacket
4. HR-50W04-1.0Collet 1.0mm
HR-50W04-1.6Collet 1.6mm
HR-50W04-2.4Collet 2.4mm
HR-50W04-3.2Collet 3.2mm
HR-50W04-4.0Collet 4.0mm
5. HR-50W05Collet Body
6. HR-50W06O-Ring
7. HR-50W07Water jacket
8. HR-50W08Insulator sleeve
9. HR-50W09-9.5Metal nozzle, 6#, 9.5mm
HR-50W09-13.7Metal nozzle, 8#, 13.7mm
HR-50W09-16.0Metal nozzle, 10#, 16mm
10. HR50W10Micro Switch
11. HR50W11Handle for HR50W
12. HR50W12Gas Hose
13. HR50W13Power Cable
14. HR50W14Water Hose
15. HR50W15Protective Neoprene Cover
