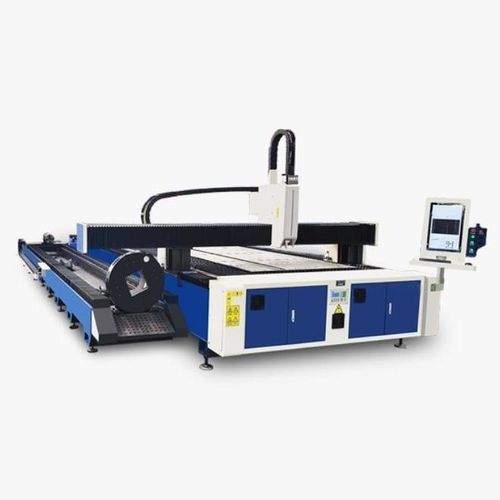

Fiber laser cutting machine LY6020Wfor metalfor thin sheet metalfor aluminum profiles
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal
- Product handled
- for thin sheet metal, for metal sheets, tube, for aluminum profiles, for metal panels, sheet
- Control type
- CNC
- Associated function
- drilling, multi-function, hole punch
- Applications
- for industrial applications, for the automotive industry, for metal fabrication, for aeronautical applications, for processing industry, for the aerospace industry, for construction machinery, for industrial vehicles, for agricultural vehicles, for shipbuilding
- Workpiece loading
- manual loading, with automated loading
- Phase
- three-phase
- Configuration
- compact, large-format, single-head, gantry type, high-rail gantry type, double table, 2D, 2-axis
- Other characteristics
- high-speed, automatic, high-precision, high-performance, high-efficiency, high-power, for mass production, pneumatic, with exchange table, rotary, for structural steel, galvanized steel
- Tube diameter
Min.: 15 mm
(1 in)Max.: 240 mm
(9 in)- Cutting speed
2 m/min, 120 m/min
(6.562 ft/s)- Laser power
Min.: 3,000 W
Max.: 6,000 W
- Repeatability
0.1 mm
(0.0039 in)- Acceleration
7.85 m/s²
(25.75 ft/s²)- Overall length
6,000 mm
(236 in)
Description
Product Overview
Integrated solution for laser cutting of tubes and flat plates with fast exchange between tube and plate modes. Designed for industrial production of round, square, rectangular and shaped tubes as well as plate cutting.
Main Features
Applications & Capabilities
Suitable for structural components, furniture frames, automotive parts, agricultural and general industrial tubing. Supports punching and complex profile cutting alongside plate processing.
Technical Parameters
Cutting Sample
Sample images available showing typical cut quality, profiles and joint types for tubes and plates.
Integrated solution for laser cutting of tubes and flat plates with fast exchange between tube and plate modes. Designed for industrial production of round, square, rectangular and shaped tubes as well as plate cutting.
Main Features
- Large-diameter pneumatic chuck for stable clamping
- One-button clamping with automatic centering
- Pneumatic clamping with adjustable clamping force
- Capable of cutting angle steel and channel steel in addition to tubes and plates
Applications & Capabilities
Suitable for structural components, furniture frames, automotive parts, agricultural and general industrial tubing. Supports punching and complex profile cutting alongside plate processing.
Technical Parameters
- Product Model: LY6020W
- Maximum tube length: 6 m
- Laser power: 3 kW – 6 kW
- Processing types: Round, rectangular, oval, U-shaped tubes; punching; flat plate cutting
- Rotation speed: 150 r/min
- Pipe size: Round 15 mm–240 mm; Square 20 mm–240 mm
- X-axis/Y-axis acceleration: 0.8 G
- Maximum idle speed: 120 m/min
- Repeat positioning accuracy: ±0.1 mm
Cutting Sample
Sample images available showing typical cut quality, profiles and joint types for tubes and plates.
