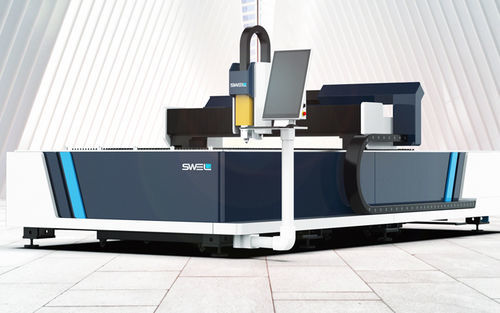

Laser cutting machine CHP

for metalsheet metalfor metal sheets

Product name
CHP Series - Large-format super power metal laser cutting machine

Overview

• Professional mechanical design with modern appearance and multiple patented technologies.
• High processing precision, fast cutting speed, narrow kerf and smooth cross sections.

Extreme Speed, Performance Leap

• Single-platform open structure optimized for large-format processing.
• Supports multi-directional loading to improve workflow efficiency.
• High mechanical stability and accelerated cutting speeds.

Brand New Double-beam Bed Structure

• Engineered to meet high-efficiency processing requirements.
• Self-developed stopper plug-in double-beam design for increased rigidity.
• Maintains form under long-term cutting to ensure stable equipment operation.

Modular Worktable Design

• Workbench assembled from modular components for rapid replacement and configuration.
• Stable worktable structure with strong load-bearing capacity.
• Easy to disassemble, replace and maintain to minimize downtime.

Bed advantages

• More stable bed construction for improved precision and repeatability.
• Larger format options expand cutting range while preserving accuracy.

Technical Parameter
Product Model | LY4020A | LY6025A | LY8025A
Working area | 4030*2030mm | 6030*2530mm | 8030*2530mm
The Y-axis stroke | 4030mm | 6030mm | 8030mm
X-axis stroke | 2030mm | 2530mm | 2530mm
Z-axis stroke | 200mm | 200mm | 200mm
X-axis/Y-axis linkage speed | 100m/min (all models)
X-axis/Y-axis acceleration | 1.5G (all models)
X-axis/Y-axis repeated positioning accuracy | ±0.02mm (all models)
Laser power | 3KW-6KW (LY4020A) | 3KW-12KW (LY6025A) | 6KW-20KW (LY8025A)

Cutting Sample
Sample cutting images are provided on the product page to illustrate typical cutting quality and edge finish.

Technical specifications

• Models: LY4020A, LY6025A, LY8025A
• Working area (LY4020A): 4030 x 2030 mm
• Working area (LY6025A): 6030 x 2530 mm
• Working area (LY8025A): 8030 x 2530 mm
• Y-axis stroke: 4030 / 6030 / 8030 mm (by model)
• X-axis stroke: 2030 / 2530 / 2530 mm (by model)
• Z-axis stroke: 200 mm
• X/Y linkage speed: 100 m/min
• X/Y acceleration: 1.5G
• Repeated positioning accuracy: ±0.02 mm
• Laser power ranges: 3 kW–6 kW, 3 kW–12 kW, 6 kW–20 kW (depending on model)
