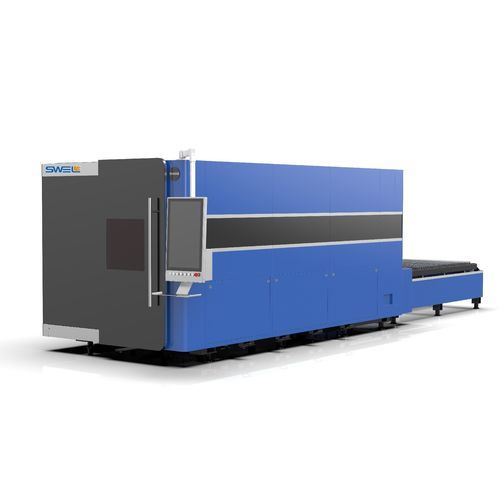

Fiber laser cutting machine CHPS series

for aluminumfor steelfor stainless steel

Overview

• Closed cabinet design with quick-exchange dual workbenches allowing simultaneous cutting and material unloading to maximize throughput and maintain a narrow cutting kerf.

Main Features

• Fully enclosed fiber laser cutting machine: sealed structure to block laser radiation, sparks and dust, improving operator safety and workplace cleanliness.
• High-power 2D laser cutting: supports laser power from 3 to 30 kW to expand cutting thickness and speed for heavy industry applications such as construction machinery and steel structures.
• Motion performance: maximum linkage acceleration 1.0G and maximum linkage speed 100 m/min for high-speed processing.
• Fly Cut mode: continuous, non-stop head motion with real-time trajectory compensation to reduce non-productive time and minimize inertial errors from frequent starts/stops.
• Multi-zone fume extraction: 8–14 zone automatic duct damper system at the table to optimize extraction of smoke and particles.
• Stable structure: monolithic welded bed providing rigidity and minimal deformation under high thermal loads.
• Service-friendly and upgradeable design: isolation of inertial and thermal stresses, precision connections for assembly accuracy, facilitating maintenance and future upgrades.

Technical Parameters
Model: CHPS3015 | CHPS4020 | CHPS6020 | CHPS6025 | CHPS8025
Laser power: 3–30 kW
Cut area (L×W): CHPS3015: 3050×1510 mm; CHPS4020: 4100×2050 mm; CHPS6020: 6100×2050 mm; CHPS6025: 6100×2550 mm; CHPS8025: 8100×2550 mm
Max acceleration: 1.0G
Max linkage speed: 100 m/min


Additional Information

• Engineered for high-power, high-stability cutting tasks and for operations requiring large cutting areas and thick-material processing.
• Dual-workbench exchange improves throughput while enhancing operator safety and environmental cleanliness.

Technical Specifications

• Series: CHPS
• Laser power range: 3–30 kW
• Available models: CHPS3015, CHPS4020, CHPS6020, CHPS6025, CHPS8025
• Cut zones (L×W): CHPS3015 = 3050×1510 mm; CHPS4020 = 4100×2050 mm; CHPS6020 = 6100×2050 mm; CHPS6025 = 6100×2550 mm; CHPS8025 = 8100×2550 mm
• Max acceleration: 1.0G
• Max linkage speed: 100 m/min
• Fume extraction system: 8–14 zones with automatic dampers
• Structure: monolithic welded bed for rigidity and stability
• Cutting mode: Fly Cut (continuous head motion with real-time trajectory compensation)
