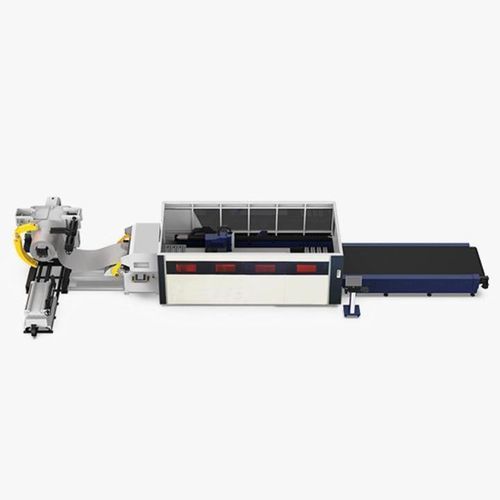

Laser cutting line CHPS

for metalcoilunwinding

Overview

• Coil material laser cutting production line engineered for high speed and precision.
• Integrates coil unwinding/rolling, leveling and laser cutting functions in a single continuous line.
• Delivers smooth sectioning, straightforward operation and reduced energy consumption.
• Designed for large-scale continuous processing with optimized cutting performance and throughput.

Product Description and Details
Coil material laser cutting production line combining rolling, leveling and cutting to enable uninterrupted processing of coil stocks. Suitable for continuous high-volume production where accuracy, repeatability and operational efficiency are required. Configurations support fast axis dynamics and configurable laser power to match material and thickness requirements.

Technical Parameter
Product Model: LY4020D | LY6025D
Working area: 4030×2030 mm | 6030×2530 mm
The Y-axis stroke: 4030 mm | 6030 mm
X-axis stroke: 2030 mm | 2530 mm
Z-stroke: 300 mm | 350 mm
X-axis/Y-axis linkage speed: 120 m/min (both models)
X-axis/Y-axis acceleration: 1.5 G (both models)
X-axis/Y-axis positioning accuracy: ±0.03 mm (both models)
X-axis/Y-axis repeated positioning accuracy: ±0.03 mm (both models)
Laser power: 3 kW–6 kW | 3 kW–20 kW

Features / Technical specifications

• Series / Model names: LY4020D; LY6025D.
• Working area: LY4020D: 4030 × 2030 mm; LY6025D: 6030 × 2530 mm.
• Y-axis stroke: LY4020D: 4030 mm; LY6025D: 6030 mm.
• X-axis stroke: LY4020D: 2030 mm; LY6025D: 2530 mm.
• Z-stroke: LY4020D: 300 mm; LY6025D: 350 mm.
• X/Y-axis linkage maximum speed: 120 m/min.
• X/Y-axis acceleration: 1.5 G.
• X/Y-axis positioning accuracy: ±0.03 mm.
• X/Y-axis repeated positioning accuracy: ±0.03 mm.
• Laser power options: LY4020D: 3 kW–6 kW; LY6025D: 3 kW–20 kW.
• Main intended application: continuous large-scale coil material cutting with integrated rolling and leveling functions.
