- Changzhou SWEL Laser Technology Co., Ltd.

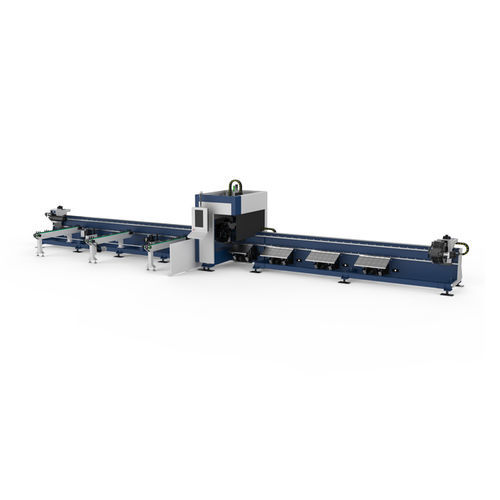

Laser cutting machine LY12036Tfor stainless steelfor carbon steelprofile
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for stainless steel, for carbon steel
- Product handled
- tube, profile
- Control type
- CNC
- Applications
- for construction machinery
- Workpiece loading
- automated loading/unloading
- Configuration
- large-format, 3-axis
- Other characteristics
- automatic, high-precision, high-speed, high-efficiency, heavy-duty, economical, modular, with automatic feeder, rotary operated
- X travel
3,030 mm
(119.29 in)- Y travel
1,530 mm
(60.24 in)- Tube diameter
Min.: 20 mm
(1 in)Max.: 350 mm
(14 in)- Laser power
Min.: 6,000 W
Max.: 12,000 W
- Repeatability
0.05 mm
(0.002 in)- Overall length
12,000 mm
(472 in)- Load capacity
1,200 kg
(2,645.5 lb)
Description
Overview
Whole Pipe Cutting, Zero Waste Processing
Wide Clamping and Cutting Range
Follow-up Support System
Automatic Loading and Unloading System
Technical Parameters
- The side-hanging 3-chuck structure enables faster, more convenient loading and unloading; the chucks move laterally to handle long tubes.
- Designed for heavy-duty pipe processing with a third chuck that clamps and pulls the pipe for continuous cutting.
Whole Pipe Cutting, Zero Waste Processing
- Third chuck clamps and pulls the pipe to enable cutting of long lengths.
- Integrated rotary system supports continuous cutting to minimize offcuts and waste.
Wide Clamping and Cutting Range
- Supports pipes up to 12 m in length and diameters from 20 to 350 mm.
- Compatible with round, square/rectangular and U-shaped profiles.
Follow-up Support System
- Automatic material supports with real-time height adjustment.
- Reduces pipe deflection and vibration during cutting to maintain accuracy.
Automatic Loading and Unloading System
- Optional automatic loading/unloading to increase throughput and reduce labor.
- Integrated controls for synchronized handling and cutting operations.
Technical Parameters
- Product Model: LY12036T
- Max Processing Length: up to 12,000 mm
- Working Area / Table: 3030 × 1530 mm
- Laser Power: 6–12 kW
- Supported Pipe Types: round tube; rectangular tube; U-shaped tube
- Pipe Diameter Range: Ø20–Ø350 mm
- Maximum Rotating Speed: 60 r/min
- Maximum Feeding Speed (idle): 60 mm/min
- Positioning Accuracy: ±0.05 mm
- Repeat Positioning Accuracy: ±0.05 mm
- Chuck Load Capacity: 1200 kg
