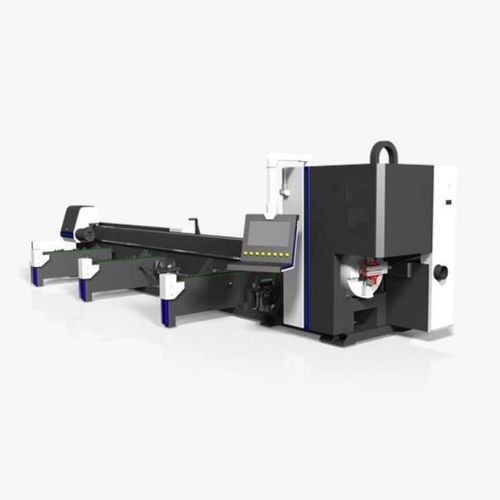

Laser cutting machine XPH2for metalprofiletube
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for metal
- Product handled
- tube, profile
- Workpiece loading
- with automated loading
- Other characteristics
- automatic, semi-automatic, precision, modular, with automatic feeder
- Cutting speed
Max.: 1.5 m/s
(4.921 ft/s)Min.: 0 m/s
(0 ft/s)- Laser power
Max.: 12,000 W
Min.: 1,500 W
- Repeatability
0.05 mm
(0.002 in)- Load capacity
Max.: 1,500 kg
(3,306.9 lb)Min.: 300 kg
(661.4 lb)
Description
Product Overview
Precision Pneumatic Chuck
Precision pneumatic chuck with four-jaw automatic centering clamping, providing stable clamping without damaging the workpiece.
Modular Design
Can be freely matched with fully automatic loading machines, semi-automatic loading machines, bevel cutting heads and other optional modules to meet diverse usage scenarios.
Universal for Various Pipes
Capable of cutting round pipes, square pipes, rectangular pipes, channel steel, angle steel, I-beams and other profiled steel.
Cutting Sample
Sample images demonstrate cutting results on various profiles and pipe types.
Technical Parameter
Product Model | LY0160T | LY0260T | LY0390T | LY0490T | LY05120T
Working area | 1.5KW-3KW | 3KW-6KW | 6KW-12KW | 6KW-12KW | 6KW-12KW
Maximum Idling Speed (rotational) | 150r/min | 100r/min | 60r/min | 60r/min | 60r/min
Processing Pipe Type | Round tube, rectangular tube, elliptical tube, U-shaped tube (colspan 5)
Maximum Idling Speed (linear) | 90m/min | 90m/min | 60m/min | 60m/min | 60m/min
Positioning Accuracy | ±0.05mm (applies to all models)
Repeat Positioning Accuracy | ±0.05mm (applies to all models)
Chuck Load Bearing | 300KG | 800KG | 1200KG | 1200KG | 1500KG
Processing Range (square tube) | Square tube 10 - Square tube 120 | Square tube 20 - Square tube 240 | Square tube 20 - Square tube 360 | Square tube 20 - Square tube 460 | Square tube 20 - Square tube 550
Characteristics / Technical Specifications
- Fully automatic tube laser cutting machine capable of high cutting speeds, stable operation and precision processing. Supports fully automatic loading systems.
Precision Pneumatic Chuck
Precision pneumatic chuck with four-jaw automatic centering clamping, providing stable clamping without damaging the workpiece.
Modular Design
Can be freely matched with fully automatic loading machines, semi-automatic loading machines, bevel cutting heads and other optional modules to meet diverse usage scenarios.
Universal for Various Pipes
Capable of cutting round pipes, square pipes, rectangular pipes, channel steel, angle steel, I-beams and other profiled steel.
Cutting Sample
Sample images demonstrate cutting results on various profiles and pipe types.
Technical Parameter
Product Model | LY0160T | LY0260T | LY0390T | LY0490T | LY05120T
Working area | 1.5KW-3KW | 3KW-6KW | 6KW-12KW | 6KW-12KW | 6KW-12KW
Maximum Idling Speed (rotational) | 150r/min | 100r/min | 60r/min | 60r/min | 60r/min
Processing Pipe Type | Round tube, rectangular tube, elliptical tube, U-shaped tube (colspan 5)
Maximum Idling Speed (linear) | 90m/min | 90m/min | 60m/min | 60m/min | 60m/min
Positioning Accuracy | ±0.05mm (applies to all models)
Repeat Positioning Accuracy | ±0.05mm (applies to all models)
Chuck Load Bearing | 300KG | 800KG | 1200KG | 1200KG | 1500KG
Processing Range (square tube) | Square tube 10 - Square tube 120 | Square tube 20 - Square tube 240 | Square tube 20 - Square tube 360 | Square tube 20 - Square tube 460 | Square tube 20 - Square tube 550
Characteristics / Technical Specifications
- Series: XPH2 Series
- Application: Tube/profile laser cutting for round, square, rectangular, elliptical and U-shaped tubes; also suitable for channel, angle and I-beam profiles
- Chuck: Precision pneumatic four-jaw automatic centering
- Modularity: Compatible with fully/semi-automatic loading systems and bevel cutting heads
- Positioning accuracy: ±0.05mm
- Repeatability: ±0.05mm
- Linear max speed: up to 90 m/min (model dependent)
- Rotational max speed: up to 150 r/min (model dependent)
- Chuck load capacity: 300–1500 KG depending on model
- Processing range for square tubes: from 10 up to 550 (model dependent)
