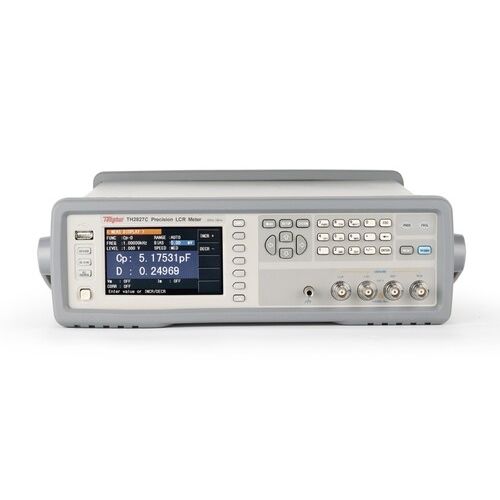

Benchtop LCR meter TH2827C

■ 4.3-inch TFT LCD display ■ Selectable Chinese and English operation interfaces ■ Maximum test frequency of 1MHz, resolution of 10mHz ■ Transformer parameter test function ■ Maximum test speed: 13ms/time ■ Automatic level control (ALC) function for V and I ■ Test signal level monitor function for V and I ■ Included interior DC bias source ■ External DC bias source of large current ■ 10-point list sweep function ■ Selectable internal resistance of 30Ω, 50Ω and 100Ω ■ Built-in comparator:10-bin sorting and bin counter ■ Internal file storage and external USB-disk file storage ■ Test data can be saved to USB-disk directly ■ RS232C, USB, LAN, HANDLER, GPIB, DCI interface Brief Introduction ■ TH2827 series is a new precision LCR meter with various functions and a higher test frequency. With small size and portable appearance, it is convenient for use on the shelves. This instrument has a basic accuracy of 0.05%, maximum test frequency of 1MHz and resolution of 10 mHz. It is easy to operate with a 4.3-inch LCD screen as well as selectable Chinese and English operation interfaces. Integrated transformer test function greatly improve the test efficiency. The instrument is also provided with multiple interfaces which can meet various requirements of the automatic sorting test, data transmission and storage.
