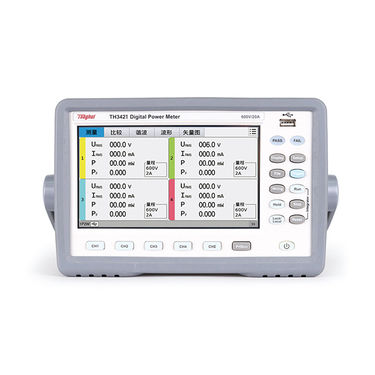

Multimeter power meter TH3421

active powerdigitalbenchtop

Digital Power Meter Basic Accuracy: 0.15% Voltage Range: 5V-600V Current Range: 0.5mA-20A Power Range: 5mW-12kW Frequency: 45Hz-420Hz Four Channel, Harmonic Analysis Features ■ Channel combination: optional 3/4 channels ■ AC and DC test ■ High stability and consistency: adopt phase-locked loop frequency multiplication synchronization control and power synchronization setting ■ High resolution display: 7-inch 800×600 resolution touch screen, support mouse operation ■ Display screenshot function ■ Broadband input: 45Hz-420Hz, suitable for most power systems on the market ■ Embedded system: equipped with embedded operating system, human-computer interaction is more flexible and friendly ■ Comparison function: provide comparison output of 8 comparison channels, and the output mode is programmable ■ Harmonic analysis: controllable analysis parameters, providing list display and bar graph display ■ Waveform display: input signal waveform/integrated power waveform ■ Vector display: vector display of input signal ■ Flexible energy integration control: provide continuous time control and manual control the running and stopping of energy integration ■ File storage: relatively powerful file system, compatible with most U disks ■ Protocol: SCPI instruction set and MODBUS instruction analysis Application ■ Power supply: AC power supply, DC power supply, linear power supply, switching power supply, inverter ■ New energy: solar batteries, new power cars, electric bicycles
