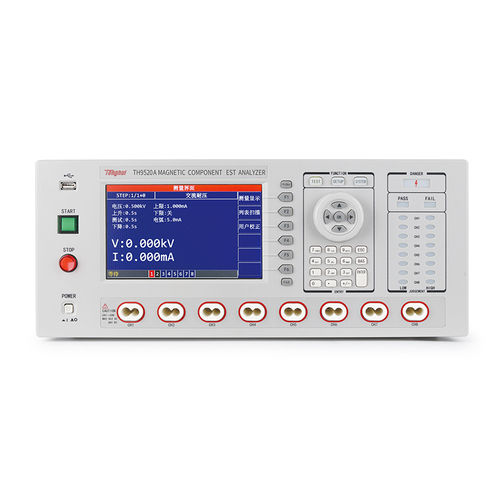

Insulation resistance tester TH9520A

motorstator windingfor transformers

Winding Compoenent EST Tester 5KV AC Withstand Voltage Analysis 6KV DC Withstand Voltage Analysis 0.1MΩ-10GΩ Insulation Resistance 3KV Winding Insulation 0.01mΩ-1.2MΩ DCR 8 channels. Features ■ High-resolution: 7-inch 800 × 480 dots, TFT-LCD display ■ Six-in-one comprehensive analysis, one machine can achieve the comprehensive test needs of coil components High-power AC withstand voltage analysis DC voltage analysis Insulation resistance analysis Turn-to-turn insulation analysis DC low resistance analysis Inductance test analysis ■ Eight-channel switching technology that can test eight different components simultaneously ■ 500VA power AC withstand voltage design, in line with UL 1004-1 motor test standards ■ Insulation resistance test: maximum voltage can reach 5kV ■ DC / IR automatic rapid discharge function ■ Turn-to-turn insulation test: sampling ADC promoting to 12bit, 200MHz sampling rate ■ DC low resistance test: support DC resistance calculation of △ Y-type motor ■ DC low resistance temperature conversion function and optional temperature sensor ■ Inductance test analysis of up to 100kHz frequency ■ Quick contact check function to realize rapid detection of test fixture ■ New-type high voltage test fixture Four-terminal Kelvin test of DC low resistance and inductance ■ Test steps up to 32 ■ Internal file storage and external U disk file saving Application ■ Comprehensive analysis test of motors ■ Comprehensive analysis test of transformers ■ Comprehensive test of inductors ■ Comprehensive analysis test of charging pile inductance characteristics ■ Comprehensive analysis test of magnetic components
