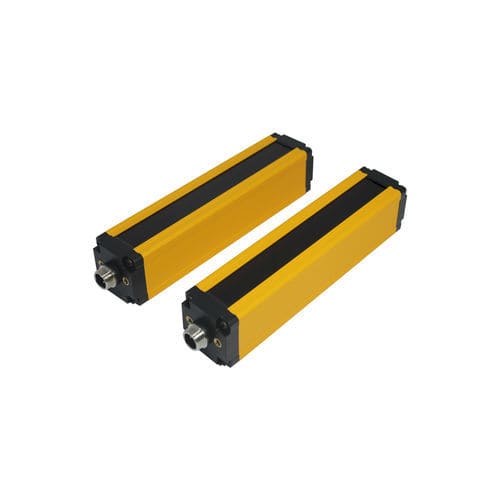

Type 2 safety light curtain CSG02-T03256DP2-Amultibeamthrough-beamheavy-duty
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- heavy-duty, IP65
- Other characteristics
- long-range
- Operating range
Min.: 0.1 m
(0'03" )Max.: 3 m
(9'10" )
Description
Product
CSG02-T03256DP2-A (CSG series) safety light curtain, through-beam type for presence and intrusion detection.
Key features
Technical specifications
Mechanical / Electrical parameters
CSG02-T03256DP2-A (CSG series) safety light curtain, through-beam type for presence and intrusion detection.
Key features
- Product type: Reinforced
- Detection range: 0–30 m
- Detection principle: Through-beam
- Output type: PNP NC
- Supply voltage: DC 24V
- Protection rating: IP65
Technical specifications
- Model: CSG02-T03256DP2-A (CSG series)
- Number of beams: 256
- Beam pitch: 2 mm
- Protection height: 510 mm
- Cable length: 0.5 m
- Synchronization: Line sync
- Mounting: Top/bottom installation
- Accessories included: manual, certificate, mounting brackets, mounting screws
Mechanical / Electrical parameters
- Output type: PNP NC
- Supply voltage: DC 24V
- Protection rating: IP65
- Connection: Connector
- Signal type: Discrete (switch)
- Operating mode: Dark ON
- Installation method: Top and bottom mounting
