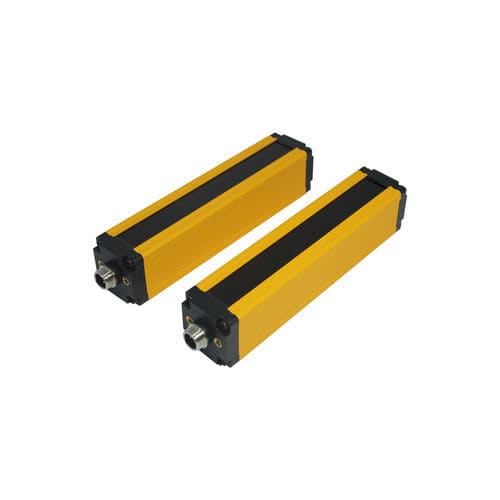

Type 2 safety light curtain CSG02-T03192DP2-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Min.: 0.1 m
(0'03" )Max.: 3 m
(9'10" )
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Packaging & pricing
Additional technical characteristics
- Model: CSG02-T03192DP2-A
- Series: CSG series
- Type: Reinforced
- Detection range: 0–30 m
- Detection principle: Through-beam
- Output: PNP NC
- Supply voltage: DC 24V
- Protection rating: IP65
Technical specifications
- Product type: Reinforced
- Detection range: 0–30 m
- Detection principle: Through-beam
- Cable length: 0.5 m
- Synchronization: Wired sync
- Beam pitch: 2 mm
- Number of beams: 192
- Protective height: 382 mm
- Accessories: Manual, certificate, mounting brackets, mounting screws
Mechanical / electrical parameters
- Output: PNP NC
- Supply voltage: DC 24V
- Protection rating: IP65
- Connection: Connector
- Signal type: Discrete
- Operating mode: Dark ON
- Mounting: Top and bottom installation
Packaging & pricing
- Sale price: ¥19468.00
- Unit: piece
Additional technical characteristics
- Series: CSG series
- Model: CSG02-T03192DP2-A
- Type: Reinforced
- Detection range: 0–30 m
- Detection principle: Through-beam
- Cable length: 0.5 m
- Synchronization: Wired sync
- Beam pitch: 2 mm
- Number of beams: 192
- Protective height: 382 mm
- Output: PNP NC
- Supply voltage: DC 24V
- Protection rating: IP65
- Connection: Connector
- Signal type: Discrete
- Operating mode: Dark ON
- Mounting: Top and bottom installation
- Accessories: Manual, certificate, mounting brackets, mounting screws
