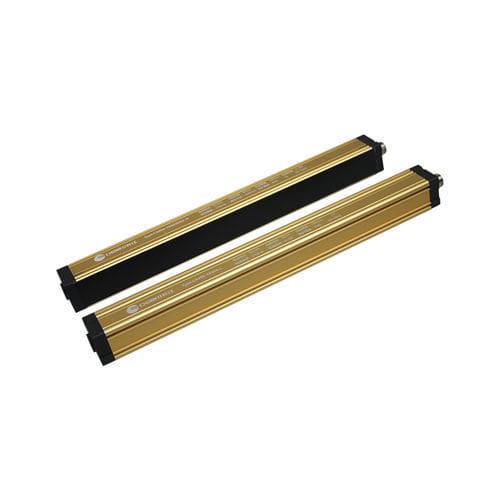

Type 2 safety light curtain CSA90-T0311DP2-Amultibeamthrough-beamvibration-resistant
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65, vibration-resistant
- Operating range
Max.: 3 m
(9'10" )Min.: 0.1 m
(0'03" )
Description
Overview
Technical specifications
Mechanical and electrical parameters
Operating environment
Recommended applications
Characteristics / technical specifications
- Product name: CSA90-T0311DP2 (CSA series light curtain)
- Product type: General-purpose
- Detection range: 0.1–10 m
- Detection principle: Through-beam
- Output: PNP NC
- Supply voltage: DC 24V
- Protection rating: IP65
Technical specifications
- Cable length: 0.5 m
- Synchronization: Cable synchronization
- Beam pitch: 90 mm
- Number of beams: 11
- Protected height: 900 mm
- Accessories: Manual, certificate, mounting brackets, mounting screws
- Materials: Housing: aluminum alloy; filter: PMMA; end caps: ABS
Mechanical and electrical parameters
- Output: PNP NC
- Supply voltage: DC 24V
- Protection rating: IP65
- Connection: Connector
- Signal type: Discrete (switch) signal
- Operating mode: Dark ON
- Mounting: Top/bottom mounting
- Indicator: Transmitter/receiver red flashing
- Protection circuit: Short-circuit protection
- Shock resistance: 30G, 3 shocks in X, Y, Z directions
- Dielectric strength: AC 1000V 50/60Hz 1 min (live parts to housing)
- Vibration resistance: 10–55Hz, 1.5 mm amplitude, 2 h each direction X, Y, Z
Operating environment
- Humidity: Operating/storage 35–85% RH (no condensation)
- Illumination: Receiver surface illumination: incandescent <3000 lx, sunlight <10000 lx, incidence angle <5°
Recommended applications
- 3C electronics industry
- Automated parking systems
- Logistics and warehousing
Characteristics / technical specifications
- Product type: General-purpose
- Detection range: 0.1–10 m
- Detection principle: Through-beam
- Beam pitch: 90 mm
- Number of beams: 11
- Protected height: 900 mm
- Output: PNP NC
- Supply voltage: DC 24V
- Protection rating: IP65
- Cable length: 0.5 m
- Materials: Housing: aluminum alloy; filter: PMMA; end caps: ABS
- Accessories: Manual, certificate, mounting brackets, mounting screws
