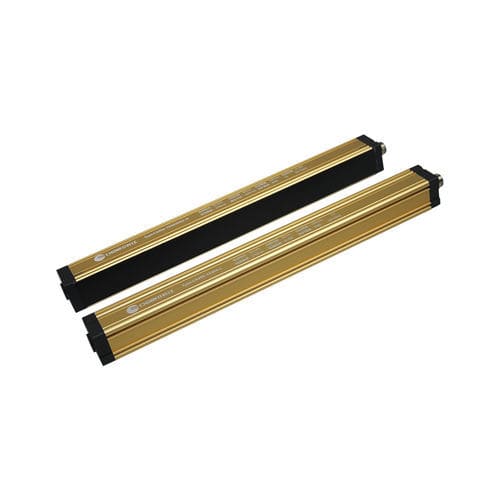

Type 2 safety light curtain CSA90-T0310DP2-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Min.: 0.1 m
(0'03" )Max.: 3 m
(9'10" )
Description
Product overview
Technical specifications
Mechanical/electrical parameters
Operating environment
Recommended applications
- Series: CSA series light curtain
- Model: CSA90-T0310DP2
- Type: General-purpose through-beam light curtain
- Detection range: 0.1–10 m
- Detection principle: Through-beam
- Output: PNP NC
- Supply voltage: DC 24 V
- Protection rating: IP65
Technical specifications
- Type: General-purpose
- Detection range: 0.1–10 m
- Detection principle: Through-beam
- Cable length: 0.5 m
- Synchronization: Cable synchronization
- Beam pitch: 90 mm
- Number of beams: 10
- Protection height: 810 mm
- Accessories: Manual, certificate, mounting bracket, mounting screws
- Materials: Housing: aluminum alloy; filter: PMMA; end caps: ABS
Mechanical/electrical parameters
- Output: PNP NC
- Supply voltage: DC 24 V
- Protection rating: IP65
- Connection: Connector
- Signal type: Discrete (switch) signal
- Operation mode: Dark ON
- Mounting: Vertical (transmitter above/receiver below or vice versa)
- Indicators: Transmitter/receiver red blinking
- Protection circuit: Short-circuit protection
- Shock resistance: 30G, 3 impacts per X/Y/Z direction
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (between charged parts and housing)
- Vibration resistance: 10–55 Hz, 1.5 mm amplitude, 2 h per X/Y/Z axis
Operating environment
- Humidity: Operating/storage 35–85% RH (no condensation)
- Illumination at receiver: Incandescent light <3000 lx, sunlight <10000 lx, incidence angle <5°
Recommended applications
- 3C electronics industry
- Automated parking systems
- Logistics and warehousing
