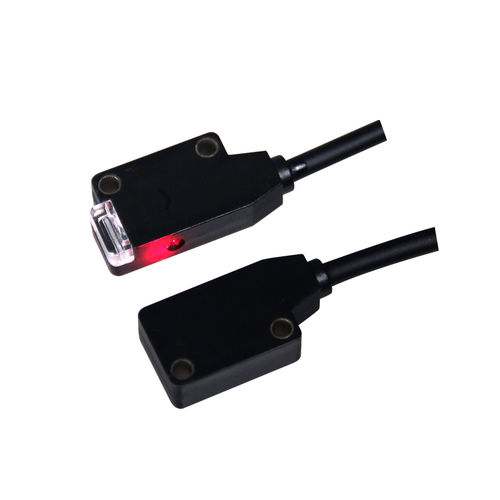

Through-beam photoelectric sensor CPD-TRP150N1

rectangularsquaremultibeam

1. **Naming Rule**
Detection principle: Through‑beam photoelectric sensor, front detection.
Connection: 2m PVC cable. Distance code: 150=150mm, 300=300mm.
Output suffix: N=NPN, P=PNP; 1=Light‑ON, 2=Dark‑ON.
‑ NPN: CPD‑TRP150N1/2, CPD‑TRP300N1/2
‑ PNP: CPD‑TRP150P1/2, CPD‑TRP300P1/2
2. **Available Part Numbers**
CPD‑TRP150N1, CPD‑TRP150N2, CPD‑TRP150P1, CPD‑TRP150P2,
CPD‑TRP300N1, CPD‑TRP300N2, CPD‑TRP300P1, CPD‑TRP300P2
3. **Detection Principle**
Ultra‑thin through‑beam sensor composed of transmitter and receiver. Output triggers when opaque object blocks the infrared beam. Front‑facing optical axis for space‑limited embedded installation.
4. **Sensing Range**
Sensing distance: 150mm / 300mm.
Light source: IR LED (850nm) / Red LED (617nm) optional.
Standard detectable object: Opaque object ≥Φ10mm.
Indicator: Red action indicator (ON when receiving light); Green stable indicator (ON under stable detection).
5. **Main Model Versions**
NPN / PNP open‑collector output, max load current 100mA.
Power supply: DC12‑24V (DC10‑30V max), ripple(P‑P) ≤10%.
Consumption current: 15mA.
6. **Key Features**
‑ Ultra‑thin housing, min thickness 3.5mm; Housing material: modified PPE
‑ Response frequency: 600Hz
‑ Protection: Power‑supply reverse‑connection protection, output short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz, 1min
‑ Vibration resistance: 10‑55Hz, amplitude 1.5mm, X/Y/Z axis 2h
‑ Shock resistance: 150m/s², X/Y/Z axis 10 times
‑ Operating temp: ‑10~+55℃; Storage temp: ‑25~+65℃ (non‑icing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH (non‑condensation)
‑ Protection grade: IP65
‑ Cable: PVC cable, length 2m
‑ Weight: approx. 40g
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100mA.
>
> Accessories: M2×8 screws, spring washers, flat washers, instruction manual, certificate of compliance.
