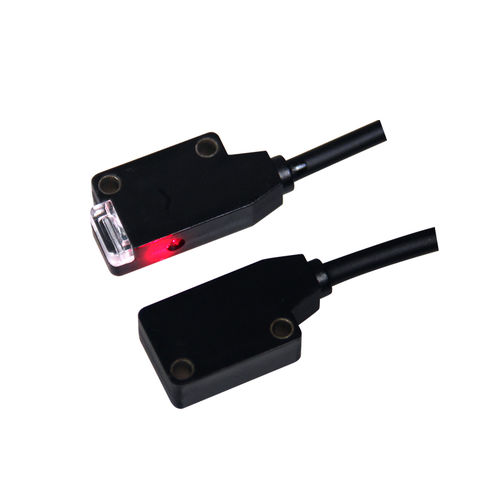

Through-beam photoelectric sensor CPD-TRP1MN2

rectangularsquaremultibeam

1. **Naming Rule**
Detection principle: Through‑beam photoelectric sensor, front detection.
Connection: 2m PVC cable. Distance code: 1M=1000mm.
Output suffix: N=NPN, P=PNP; 1=Light‑ON, 2=Dark‑ON.
‑ NPN: CPD‑TRP1MN1/2
‑ PNP: CPD‑TRP1MP1/2
2. **Available Part Numbers**
CPD‑TRP1MN1, CPD‑TRP1MN2, CPD‑TRP1MP1, CPD‑TRP1MP2
3. **Detection Principle**
Ultra‑thin through‑beam sensor composed of transmitter and receiver. Output triggers when opaque object blocks the infrared beam. Front‑facing optical axis with extended 1m sensing range for long‑distance detection in compact spaces.
4. **Sensing Range**
Sensing distance: 1000mm (1M).
Light source: IR LED (850nm) / Red LED (617nm) optional.
Standard detectable object: Opaque object ≥Φ10mm.
Indicator: Red action indicator (ON when receiving light); Green stable indicator (ON under stable detection).
5. **Main Model Versions**
NPN / PNP open‑collector output, max load current 100mA.
Power supply: DC12‑24V (DC10‑30V max), ripple(P‑P) ≤10%.
Consumption current: 15mA.
6. **Key Features**
‑ Ultra‑thin housing, min thickness 3.5mm; Housing material: modified PPE
‑ Response frequency: 600Hz
‑ Protection: Power‑supply reverse‑connection protection, output short‑circuit protection, output reverse‑connection protection
‑ Withstand voltage: AC1000V 50/60Hz, 1min
‑ Vibration resistance: 10‑55Hz, amplitude 1.5mm, X/Y/Z axis 2h
‑ Shock resistance: 150m/s², X/Y/Z axis 10 times
‑ Operating temp: ‑10~+55℃; Storage temp: ‑25~+65℃ (non‑icing, non‑condensation)
‑ Humidity: Operating 35‑85%RH; Storage 35‑95%RH (non‑condensation)
‑ Protection grade: IP65
‑ Cable: PVC cable, length 2m
‑ Weight: approx. 40g
7. **Operation Mode**
Light‑ON (light‑received ON) / Dark‑ON (beam‑blocked ON).
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100mA.
>
> Accessories: M2×8 screws, spring washers, flat washers, instruction manual, certificate of compliance.
