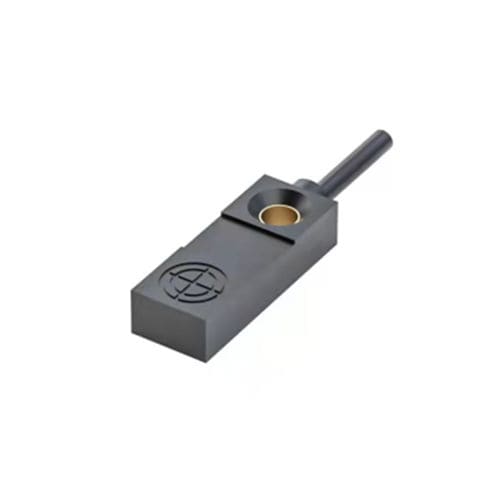

Inductive proximity sensor CL10-FNF3DN2flatNPN12VDC
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- flat
- Output signal
- NPN
- Supply voltage
- 24VDC, 12VDC
- Mounting
- non-flush
- Protection level
- IP67
- Other characteristics
- 3-wire
- Measuring range
Max.: 3 mm
(0.12 in)Min.: 0 mm
(0 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product
Technical specifications
Mechanical / Electrical parameters
Operating environment
Series / Technical specifications
- Type: Ultra-compact inductive proximity sensor
- Sensing distance: 3 mm
- Form factor: Flat
- Sensing principle: Inductive (metal targets)
- Dimensions: 10 × 6 × 30 mm
- Output: NPN NC
Technical specifications
- Sensing distance: 3 mm
- Response frequency: 600 Hz
- Response time: 800 μs
- Cable length: 2 m (molded cable)
- Sensing direction: Top
- Standard target: Iron 10 × 10 × 1 mm
- Hysteresis: <10% of sensing distance
- Temperature drift: within ±10% over -25 to +70°C (ref. +23°C)
- Materials: Housing heat-resistant ABS; Cable PVC
Mechanical / Electrical parameters
- Output type: NPN NC (switch)
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Protection class: IP67
- Connection: Molded cable
- Signal type: Binary (switch)
- Operating mode: Normally closed
- Mounting: Non-embeddable
- Current consumption: ≤15 mA
- Indicator: Red output LED
- Protection circuits: Short-circuit and surge protection
- Voltage effect: ±15% supply variation → ≤±1% change in sensing distance
- Max load current: ≤100 mA
- Insulation resistance: ≥50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², 3 shocks each axis
- Dielectric strength: AC 1000 V 50/60 Hz, 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h each axis
- Weight: 26.5 g
Operating environment
- Operating temperature: -25 to +70°C
Series / Technical specifications
- Series/model: CL10 series
- Model code: CL10-FNF3DN2
- Sensing distance: 3 mm
- Sensing principle: Inductive (metal targets)
- Dimensions: 10 × 6 × 30 mm
- Cable length: 2 m (molded)
- Output: NPN NC, switch
- Supply: DC 12–24 V, 3-wire DC
- Protection class: IP67
- Response frequency/time: 600 Hz / 800 μs
- Materials: Housing heat-resistant ABS, cable PVC
- Operating temperature: -25 to +70°C
- Weight: 26.5 g
