Capacitive proximity sensor CC18-RN15AK1
cylindricalM18with switching function

Capacitive proximity sensor - CC18-RN15AK1 - CHANKO SENSOR - cylindrical / M18 / with switching function
Capacitive proximity sensor - CC18-RN15AK1 - CHANKO SENSOR - cylindrical / M18 / with switching function
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Characteristics

Technology
capacitive
Shape
cylindrical
Diameter
M18
Output signal
with switching function, 2-wire
Supply voltage
AC
Mounting
non-flush
Material
PVC
Protection level
IP67
Other characteristics
non-contact
Measuring range

1.5 cm
(0.59 in)

Process temperature

Min.: -25 °C
(-13 °F)

Max.: 70 °C
(158 °F)

Description

Product name
CC18-RN15AK1 (CC18 series capacitive proximity sensor)

Overview
  • Product type: Standard
  • Sensing distance: 15 mm
  • Housing shape: Cylindrical
  • Sensing principle: Capacitive
  • Thread / size: M18
  • Output: AC two‑wire, NO (normally open)
  • Cable length: 2 m, moulded cable


Technical specifications
  • Sensing direction: Front
  • Switching frequency: 25 Hz
  • Response time: 20 ms
  • Detectable targets: Non‑metal (standard target: iron 45×45×1 mm)
  • Accessories: Nuts ×2, inspection certificate
  • Hysteresis: ≤ 15% of sensing distance
  • Temperature drift: Within −25 to +70 °C, variation within ±10% referenced to +23 °C
  • Materials: Housing: PBT; Cable: PVC


Mechanical / Electrical parameters
  • Output type: AC two‑wire, NO
  • Supply voltage: AC 24–220 V
  • Supply type: AC two‑wire
  • Protection rating: IP67
  • Connection: Moulded cable
  • Signal type: Switching
  • Operation mode: Normally open
  • Mounting: Non‑flush (non‑embedded)
  • Indicator: Red output indicator
  • Voltage influence: Within ±15% supply variation, sensing distance change ≤ ±1%
  • Insulation resistance: ≥ 50 MΩ (DC 500 V megger) between live parts and housing
  • Switching capacity: 5–200 mA
  • Leakage current: ≤ 2.5 mA
  • Shock resistance: 500 m/s², 3 times each X/Y/Z
  • Withstand voltage: AC 1000 V, 50/60 Hz, 1 min between live parts and housing
  • Vibration resistance: 10–55 Hz, double amplitude 1.5 mm, 2 h each X/Y/Z
  • Weight: Approx. 88 g


Operating environment
  • Operating temperature: −25 to +70 °C


Recommended applications
  • 3C electronics manufacturing
  • Multistorey / automated parking systems
  • Logistics and warehousing systems


Features / Technical data
  • Series: CC18
  • Model: CC18-RN15AK1
  • Product type: Standard capacitive proximity sensor
  • Sensing distance: 15 mm
  • Housing: M18 (cylindrical)
  • Cable length: 2 m (moulded cable)
  • Sensing direction: Front
  • Switching frequency: 25 Hz
  • Response time: 20 ms
  • Target type: Non‑metal (standard test object: iron 45×45×1 mm)
  • Accessories: Nuts ×2, inspection certificate
  • Hysteresis: ≤ 15% of sensing distance
  • Temperature range: −25 to +70 °C; ±10% variation referenced to +23 °C
  • Housing material: PBT; Cable material: PVC
  • Supply: AC 24–220 V (two‑wire)
  • Output: Switching (AC two‑wire, NO), 5–200 mA, leakage ≤ 2.5 mA
  • Protection: IP67
  • Mounting: Non‑flush
  • Indicator: Red output LED
  • Insulation: ≥ 50 MΩ (DC 500 V)
  • Withstand voltage: AC 1000 V, 1 min
  • Shock: 500 m/s², 3× each axis
  • Vibration: 10–55 Hz, 1.5 mm double amplitude, 2 h each axis
  • Weight: ≈ 88 g

Catalogs

No catalogs are available for this product.

See all of CHANKO SENSOR‘s catalogs
Go to the CHANKO SENSOR website for more information

Other CHANKO SENSOR products

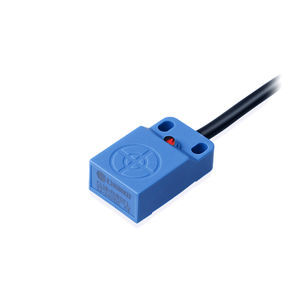

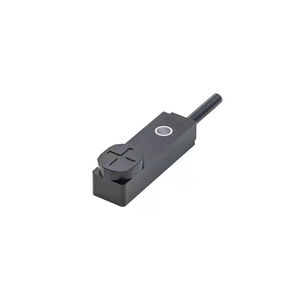

CL Series Flat Inductive proximity sensor
