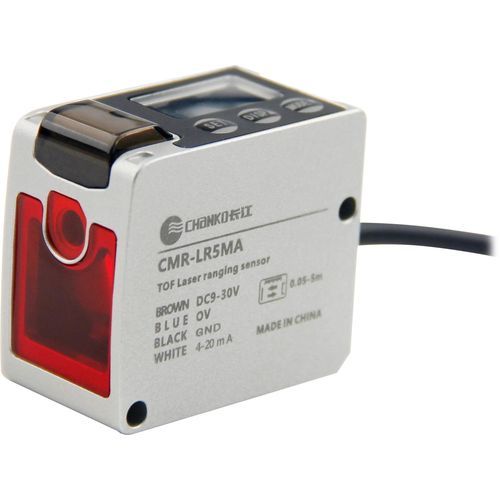

Linear displacement sensor CMR-LE5ME3non-contactlaserDC output
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- laser
- Output signal
- digital output, DC output, with semiconductor output
- Protection class
- IP65
- Applications
- industrial, for laser applications
- Other characteristics
- compact, long-range
- Measuring range
Max.: 500 cm
(196.85 in)Min.: 5 cm
(1.97 in)- Supply voltage
Max.: 30 V
Min.: 9 V
- Ambient temperature
Max.: 55 °C
(131 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Features / specifications summary
- Detection range: 50–5000 mm
- Detection principle: displacement/distance type (point laser)
- Output: NPN / PNP
- Supply voltage: DC 9–30 V
- Repeatability: < ±3 mm
- Light source: spot laser
Technical specifications
- Cable length: 2 m
- Sensing direction: frontal
- Response time options: 0.5 ms / 1.5 ms / 10 ms / 25 ms / 50 ms / 100 ms / 1000 ms
- Accessories: manual, conformity certificate
- Dimensions: 23 × 38 × 41 mm
Mechanical / electrical parameters
- Protection rating: IP65
- Connection: molded cable
- Operating mode: normally open / normally closed (NO / NC)
- Protection circuits: reverse polarity protection, output short-circuit protection, output reverse-connection protection, overload protection
- Weight: approx. 85 g
Operating environment
- Ambient temperature: -25 to 55 °C
- Ambient humidity: 35–85% RH
- Ambient illumination: incandescent illumination on sensing surface ≤ 3000 lx
Features / specifications summary
- Model: CMR-LE5ME3
- Range: 50–5000 mm
- Measurement principle: displacement/distance (point laser)
- Resolution / repeatability: < ±3 mm
- Response time options: 0.5 ms / 1.5 ms / 10 ms / 25 ms / 50 ms / 100 ms / 1000 ms
- Output type: NPN / PNP
- Power supply: DC 9–30 V
- Interface: molded cable (2 m)
- Protection rating: IP65
- Operating mode: NO / NC
- Protection features: reverse polarity, short-circuit, reverse output, overload
- Dimensions: 23 × 38 × 41 mm
- Weight: ~85 g
- Accessories: manual, conformity certificate
- Operating temp/humidity: -25–55 °C, 35–85% RH
- Illumination limit: incandescent ≤ 3000 lx
