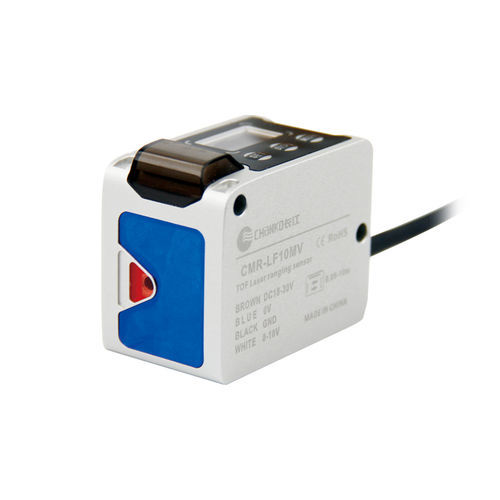

Linear displacement sensor CMR-LF10ME3non-contactlaserinfrared
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- laser, infrared
- Output signal
- digital output, DC output, with semiconductor output
- Protection class
- IP65
- Other characteristics
- long-range
- Measuring range
Min.: 10 cm
(3.94 in)Max.: 1,000 cm
(393.7 in)- Supply voltage
Min.: 9 V
Max.: 30 V
- Ambient temperature
Min.: -25 °C
(-13 °F)Max.: 55 °C
(131 °F)
Description
Key features
Technical specifications
Mechanical / electrical parameters
Operating environment
Included accessories
- Detection range: 100–10000 mm
- Measurement principle: distance measurement
- Output: NPN/PNP
- Power supply: DC 9–30 V
- Repeatability: <±7 mm
- Light source: infrared dot laser
Technical specifications
- Model: CMR-LF10ME3
- Detection range: 100–10000 mm
- Cable length: 2 m (molded cable)
- Detection direction: front
- Selectable response time: 0.5 ms / 1.5 ms / 10 ms / 25 ms / 50 ms / 100 ms / 1000 ms
- Repeatability: <±7 mm
- Dimensions: 44 × 20 × 25 mm
- Weight: approx. 136 g
Mechanical / electrical parameters
- Output type: NPN/PNP
- Power supply: DC 9–30 V
- Protection rating: IP65
- Connection: molded cable
- Operation mode: NO/NC
- Protection circuits: reverse polarity, output short-circuit, output reverse-connection, overload protection
Operating environment
- Operating temperature: -25 to 55 °C
- Operating humidity: 35 to 85% RH
- Ambient illumination: incandescent — receiving surface illumination < 10000 lx
Included accessories
- Manual
- Certificate of conformity
