Compact enclosure CFXC-WPS

panelrectangularcylindrical

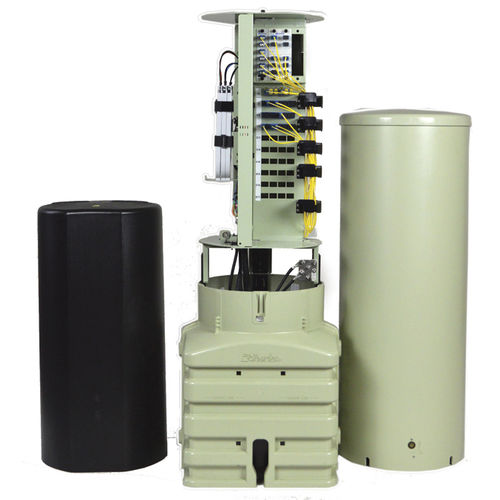

The CFXC WDM Patch and Splice (CFXC-WPS) pedestal is designed to extend high-capacity fiber backhaul services, at multi-tenant wireless provider cell sites, business parks or remote terminals when limited dark fibers are available. The CFXC-WPS offers a lower cost alternative to placing traditional cabinet-type solutions for back-haul WDM deployments in the outside plant. Unlike metallic cabinets, the CFXC-WPS pedestal is flood proof and can be installed in almost any location. Its compact size makes it easier to install and more economical to place, without the need for an expensive concrete pad. The CFXC-WPS pedestal supports six feed fibers for connection to the WDM input connections and is orderable with up to 72 distribution (customer) fibers. The pedestal has factory installed and tested fiber fanouts, routed from the bulkhead adapters to the fiber splice basket, for quicker network turn-up. Engineered to support loop-thru or terminal cabling configurations and up to five splice trays. Integrated four-slot LGX-compatible panel supports up to 4 single-wide or 2 double-width LGX style CWDM modules 6 fiber SC (UPC or APC) feed-fiber shuttered adapter Up to 72 SC (UPC or APC) distribution fiber adapters 3-way bend controls for routing 1 meter jumpers to and from CWDM modules Splice tray holder will hold up to five Charles 24-fiber splice trays Six cable entry locations are provided with two (2) 1” seals and four (4) 5/8” seals Lower cost alternative to expensive pads Adaptors are attached to connectorized fanouts on the backside that are installed, tested and routed to the splice area in the factory
