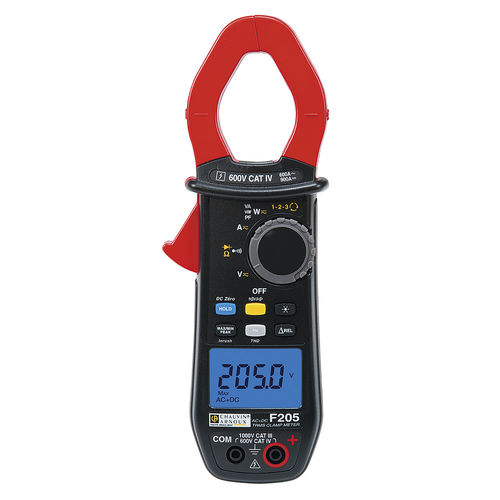

Digital clamp multimeter F205
portable600 V1000 V

digital clamp multimeter
digital clamp multimeter
digital clamp multimeter
digital clamp multimeter
digital clamp multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
600 V, 1000 V
Max current
600 A
Safety rating
cat III, cat IV
Additional features
with power measurement, total harmonic distortion THD
Other characteristics
true RMS, AC/DC

Description

The F205 clamp is ideal for low and medium-power Low-Voltage applications, maintenance of tertiary or industrial electrical installations and troubleshooting and sizing of electrical power supplies. Equipped with a fast 12-bit TRMS digital acquisition system, F205 clamps offer particularly accurate measurements whatever the signal's type and waveform. Caractéristiques: •Clamping diameter: 34 mm •Current: 600 A AC / 900 A DC •AC and DC voltage up to 1,000 V •Resistance and audible continuity •Power values (W, var, VA, PF) and harmonics (THDf, THDr) •"2- wire method" phase rotation •Automatic AC/DC detection •TrueInrush current measurement •Min, MAX, Peak+, Peak- •RELative (ΔX) and differential (ΔX/X) measurements •CAT IV 600 V
