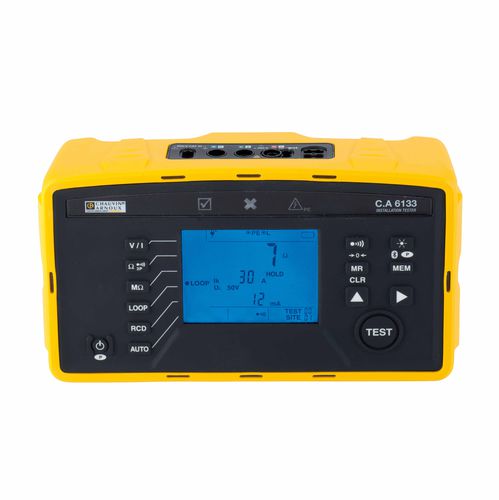

Continuity tester CA 6131 - CA 6133

for electrical installationscompactwith LCD screen

Highlights - Earth measurement by loop methods - Continuity measurement at 0.2A - Insulation testing - RCD testing: current and trip time Description Complete and lightweight, the C.A 6131 multifunction tester can be used to perform all the measurements and tests needed by certification organizations and maintenance teams to qualify an electrical installation. Ergonomics The C.A 6131 is simple to use. On the front panel, each key corresponds to a function. It is designed for simplified use in all conditions: - Stand for positioning on a bench or table - 4-point strap for effortless hands-free use - Backlit screen for easy reading, even when the lighting is insufficient - Terminal strip with explicit markings (L, N, PE, +, com) to prevent connection errors - Remote-control probe for starting tests remotely - A three-pole cable for direct measurements on 2P + E sockets Measurements The C.A 6131 can be used for voltage, continuity, resistance, insulation and loop measurements. The current can be measured with an external clamp. It is possible to test type A & AC RCDs in ramp or pulse mode. The C.A 6131 also checks the phase rotation. For greater efficiency, the C.A 6131 provides an immediate visual indication of the test result (OK/NOK).
