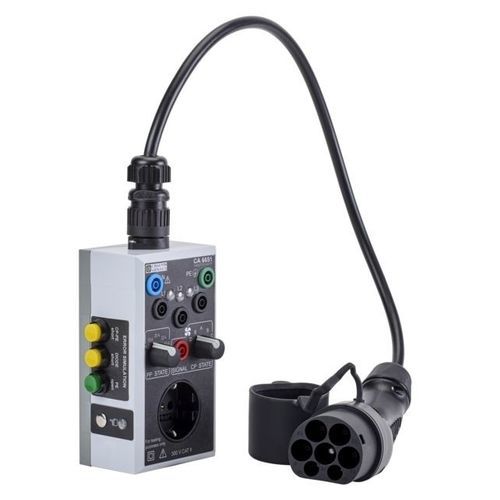

Test power adapter CA 6651

for electric charging stationssafety

The CA 6651 test adapter for electric vehicle charging stations is simple to use. It can be interfaced in series on the output of a charging station and allows you to access the various measurement points on a type-2 socket to perform electrical tests. The CA 6651 can be used first to perform the following tests: - The functional test to check that the PE protective conductor is correctly connected to the earth and that the phases are present - Verification of the electric vehicle charger station’s safety; to do this, you need to use the adapter with a multifunction tester (e.g. CA 6117, CA 6131, CA 6133 or MX 535) : Mains test, earthing test, RCD test, insulation measurement The CA 6651 then checks whether the charging station is operating properly by simulating a vehicle in various states: connected, not connected, charging, etc. To check that the signal is transmitted correctly between the charging station and the CA 6651, you need to use a handheld oscilloscope such as the Handscope (signal waveform, amplitude, pulse width, etc.) Highlights • - Test adapter for mode-3 AC charging stations equipped with a type-2 cable • - Simulation of vehicle status (CP signal) • - Switching between the different charging currents from 13 to 63A (PP status) • - Connection to view the status of the signal (CP) • - PE pre-test to check that no hazardous voltage is present in relation to the PE earth • - Presence of phases L1/L2/L3 indicated by 3 LEDs
