Universal testing machine WAW-2000D 2000KNcompressiontensilebending
Add to favorites
Compare this product
Characteristics
- Test type
- compression, universal, tensile, bending, pull, shearing, tension and compression, durability
- Operating mode
- computer-controlled, automatic
- Test material
- for springs, for plastics, concrete, for building materials, for pipe, for sheet metal, for wire ropes and strands, vehicle, for bars and tubes, for plastic pipes, for wire, for rebar, for glass, for chains
- Sector
- for the packaging industry, for laboratories, for research and development, industrial, for the automotive industry, for quality control, for the electronics industry, for civil and military aviation, for the petroleum industry, agricultural, for railway applications
- Technology
- servo-mechanical, servo-hydraulic
- Configuration
- vertical
- Other characteristics
- precision, static, high-stability, high-speed, axial, stainless steel
Description

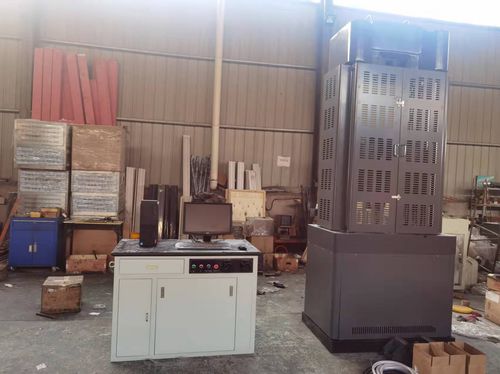

Model:WAW-2000D Computer Control Hydraulic Servo Universal Testing Machine
Max.Force:2000KN, 200 tons
Application:WAW-2000D Computer controlled electro-hydraulic servo universal testing machine adopts the oil cylinder under-mounted host, which is mainly used for the tensile, compression and bending tests of metals and non-metals. Applicable to metallurgy, construction, light industry, aviation, aerospace, materials, colleges, scientific research units and other fields.
Specification:
Test machine level: No.1
6-Columns
Maximum tensile test space:850mm(can be modified)
Maximum compression space:800mm(can be modified)
Maximum moving speed of piston:50mm/min
Standard:
ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.ASTM E83, ISO 9513, BS3846, EN10002-4. ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.etc.
VIDEO
Catalogs
WAW-2000D 2000KN
11 Pages
Other Chengyu Testing Equipment Co.,Ltd products
Hydraulic Universal Testing Machine
