Impact testing machine semi-automaticfor metallic materialsdigital
Add to favorites
Compare this product
Characteristics
- Test type
- impact
- Operating mode
- semi-automatic
- Test material
- for metallic materials
- Technology
- digital, mechanical
- Other characteristics
- precision, pendulum, 90-180°
Description

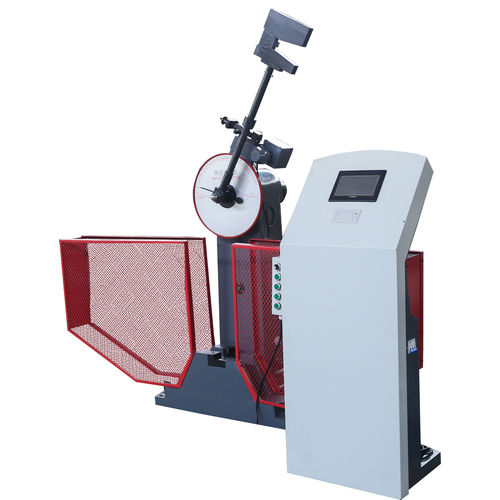

1. Product Name: JBS-500B Digital Display Metal Pendulum Impact Tester
2. Model: JBS-500B
3. Introduction:
JBS-500B is a new generation of pendulum impact testing machines. The impact testing machine is used to determine the resistance of metal materials to impact under dynamic load, so as to judge the quality of the material under dynamic load.
4. Features:
1. Impact energy: 500J
2. Impact speed: 5.4m/s
3. Pre-lift angle of the pendulum: 150°
4. Span of sample support: 40mm 70mm
5. Rounded corners of support jaws: R1.0~1.5mm
6. Impact blade fillet: R2.0~2.5mm (R8mm)
