Universal testing machine WDWL-100D 100KNtensiletensionshearing
Add to favorites
Compare this product
Characteristics
- Test type
- universal, tensile, tension, shearing
- Operating mode
- computer-controlled, automatic
- Test material
- for plastics, for materials, for rubber, for fiber optics, for building materials, for composite materials, for plastic pipes, for pipe, for wire ropes and strands, for bars and tubes, for wire, for flexible materials, for safety belts, adhesive, for rebar, for rubber
- Sector
- for laboratories, for research and development, industrial, for the automotive industry, for quality control, for the construction industry, for workshops, for civil and military aviation, agricultural, for railway applications
- Technology
- electronic, universal
- Configuration
- horizontal
- Other characteristics
- precision, static, high-stability, high-speed
Description

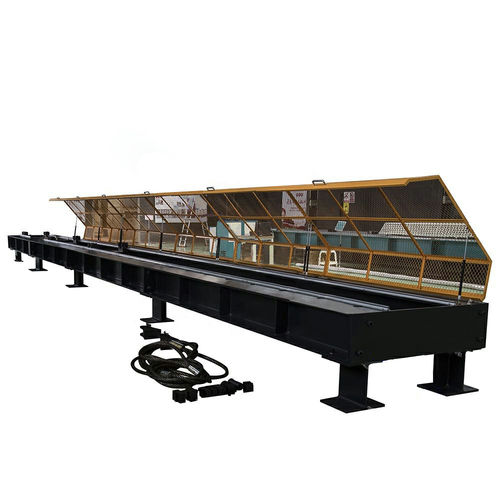

Model:WDW-L100D 100KN Horizontal Tensile Testing Machine
Max Force:100KN, 10TONS(other force capacity is optional)
Length:2m, 4m, 8m, 10m, 12m(can be modified)
Application:
WDWL-Series Electronic Horizontal Tensile Testing Machine is mainly applied to do the tensile test of all kinds of steel wire rope, bolts, anchor chain, chain hoists, as well as power fittings, wire and cable, rigging, shackles, insulators and other parts. The Electronic Horizontal Testing Machine adopts frame structure horizontal machine, single lever double acting and ball screw bilateral guiding.The Electronic Horizontal Testing Machine tests the force with the high-precision tensile & pressure type load sensor,and test the displacement with the photoelectric encoder.
