Workpiece grinding machine FSG-6080DC
verticalcolumn typeCNC

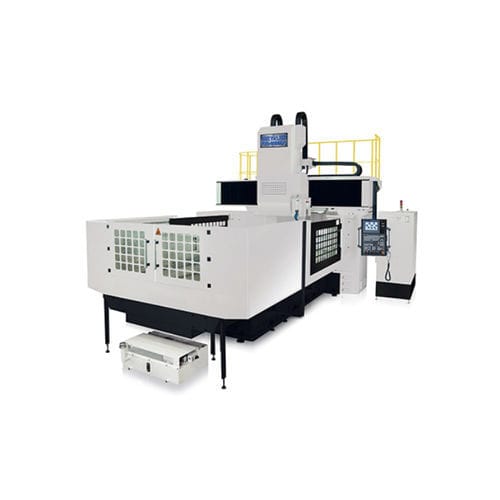

Workpiece grinding machine - FSG-6080DC - CHEVALIER - Falcon Machine Tools - vertical / column type / CNC
Workpiece grinding machine - FSG-6080DC - CHEVALIER - Falcon Machine Tools - vertical / column type / CNC
Add to favorites
Compare this product

Characteristics

Applications
workpiece
Structure
vertical, column type
Control type
CNC
Features
stationary
Spindle speed

Max.: 2,000 rpm
(12,566 rad.min-1)

Min.: 500 rpm
(3,142 rad.min-1)

Power

Max.: 80 ch
(80 hp)

Min.: 30 ch
(30 hp)

Description

Patented Elevation Guideways and Spindle Structure. Spindle Construction. Automatic Lubrication System. saddle System Design. Patented Linear Guideway Design. Machine Base and Table Design. Specification SMART Control and Fixed Beam Type Table Size (W x L): up to 1,500 x 3,000mm (59" x 118") Max. Table Load: up to 35,000kg (77,000 lbs.) Spindle Motor: up to 25HP on Horizonal Head, Option Vertical Head up to 15HP (FSG-60DC series) Greater Spindle HP Available(FSG-60 series) Optional Electromagnetic chuck (with chuck controller). Table mounted grinding wheel dresser (without diamond disc). Automatic paper filter type coolant system with magnetic separator & chiller. Dynamic wheel balancing system. Anti-crash protection device for spindle. Y,Z axis digital read out system. Grinding wheel dresser driven by air cylinder. Wheel balancing stand. Extra wheel flange. Vertical grinding head (FSG-60DC series, includes 2 wheel flange).
