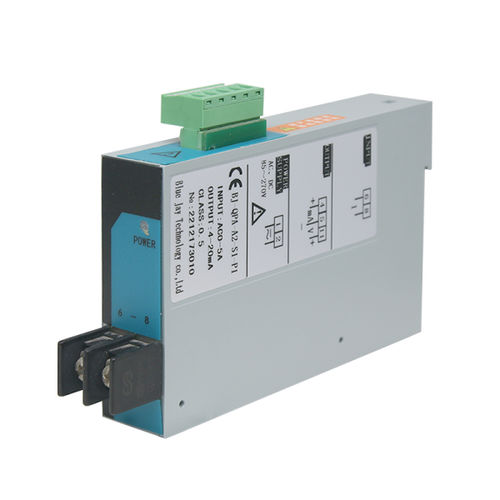

Digital current transmitter QP-A/V(T)

DIN railDCAC

QP-A/V(T) Current Voltage Transducer adapts microcontroller technology as the core using the latest algorithms to achieve precise measurement. QP series Voltage transducer converts an AC voltage input into a load-independent output signal. It has excellent temperature characteristics and good working stability. The output signal is based on the root mean square(RMS) measurement of the input signal and hence the voltage and current transducer can be used with distorted waveforms. • Used in single phase AC circuit or DC circuit • 35mm Din rail mounting • Minimum thickness of size (T type) • RMS measurement and output • Accuracy 0.5 class • Sharp size 23x92x135mm • Optional RS485 port Power Supply : AC / DC 80-265V, 45-65Hz • Burned < 3VA Current Signal Input : …/ 1A or …/5 A • Burned < 0.2VA Voltage Signal Input : Direct access 18~277V ac (L-N) • PT secondary …/100Vac • DC upto 400V • Burned < 1VA Frequency : 45~65Hz Overload capacity : 1.2 times continuous • 10 times /5s for current • 2 times / 2sec for voltage Standard outputs : 4~20mA/ 0-20mA programmable • (0~5V / 0~10V optional) Maximum load : Current output: 0
