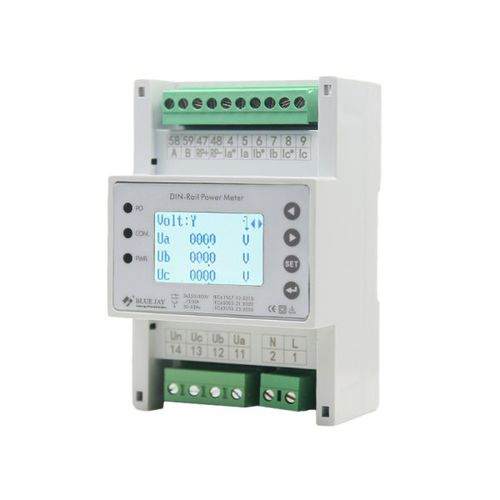

Multifunction power metering APM-4MJ

APM-4MJ advanced power meter is a din-rail multifunctional power meter that can measure and monitor advanced electrical parameters. Whether power quality monitoring or Max demand measuring, it is an ideal industrial multifunction metering solution. Measurement: power monitoring, kWh metering, power quality analysis, True-RMS Measuring Parameter, etc. Multi-Communication: Support different industrial standard protocols such as Modbus, Profibus, etc. Multi-option Current Inputs: 1A or 5A, 333mV/100mA CT option. Power Meter Security: Comply with CATIII-300V, withstand voltage 4KV Power Quality Monitoring The APM-4MJ Advanced power meter monitors harmonic distortion, voltage sag & swells, frequency variations, voltage, current unbalance factors, and other potentially harmful power events to prevent power quality issues. Besides, it can help you analyze energy power quality through harmonic analysis, event logging, and waveform capture. The harmonic analysis of APM-4MJ multi-function meter supports up to 63st individual harmonics. The waveform recording capabilities show you the waveform of voltage current, voltage sag or swell, over current, or DI/DO status.
