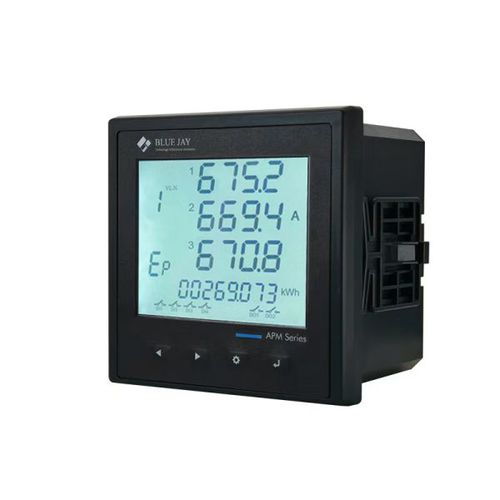

Energy meter power meter APM-96Z

digitalpanel-mountthree-phase

APM-96Z economic multifunction meter is the ideal choice for monitoring and controlling power distribution systems. The multi-function power meter provides an RS-485 communication port so it is easy for the user to connect to PLC and build a SCADA system. With high measurement accuracy(0.5%) and system stability, it is cost-effective and ideal for OEMs and panel builders’ solutions. APM-96Z economic multifunction power meter has four direct access keys and LCD displays (Option LED display screen) to help you use all the parameters in 3P3W or 3P4W LV installation. • Class 0.5 for basic power parameter. • Class 1.0 for active energy (KWH), reference IEC62053-21. • 96*96mm panel mounting size. • ITF Technology: galvanic insulation protection inputs outputs • Power Supply : AC / DC 85-265V, 45-65Hz • Burned < 10VA • Current Measurement : …/ 1A or …/5 A • Burned < 0.1W • Voltage Measurement : Direct measurement 18~277V ac (L-N) • PT secondary …/100Vac • Burned < 0.1W • Frequency Measurement : 45~65Hz • Resolution 0.01Hz • Accuracy : U / I / P/ Q – 0.5% • Frequency – 0.1% • Active Energy – 1.0 class • Reactive Energy – 2.0 class • Communication Port : RS485 (2/3 wires half duplex) • Modbus RTU mode
