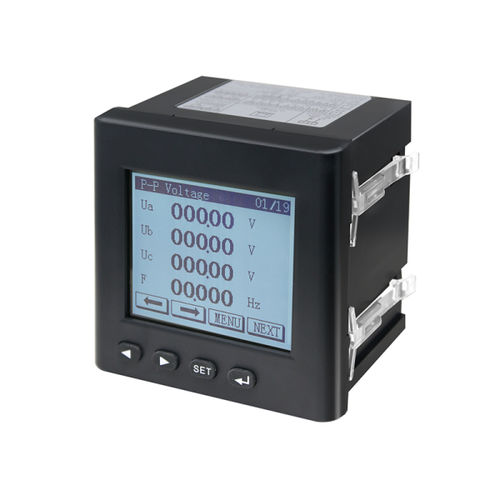

Three-phase electric energy meter APM-96Q

panel-mountRS-485with LCD display

APM-96Q Multifunction Meter With RS485 by Blue Jay is a premium panel mounting power analyzer with advanced features and precise measurement accuracy. with a user-friendly interface and four direct access keys, it is easy to use for 3P3W or 3P4W low voltage (LV) installations. APM-96Q multi-function power meter also has a digital RS485 communication port that uses the Modbus Protocol to transmit monitoring data. APM-96Q multi-function power meter gathers data for intelligent power distribution or plant automation. It measures harmonics and records multi-tariff data for accounting purposes. It monitors up to 63th harmonic for a clear understanding of electrical grid quality. Feature of APM-96Q Class 0.2 for basic power parameter, Class 0.5s for active energy (kWh), Class 0.5s for reactive energy (kVarh), Panel mounting size: 96*96mm ITF technology: galvanic insulation protection for inputs and outputs Colorful TFT screen display with English characters Provides THD and 2-63th harmonic individual monitoring with bar graph display Records multi-tariff energy data Displays three-phase current and voltage waveforms Monitoring of Max demand, Grid unbalance, Voltage, and Current deviation. Voltage drop and flicker monitoring and recording 5 virtual alarms for event tracing Max 50 SOE records and waveform capture for fault tracing Optional 128MB memory for logging basic electrical parameters Optional 3 AO ports for electricity transmitter Optional 2 DO ports for remote control Optional 4 DI ports for data collection
