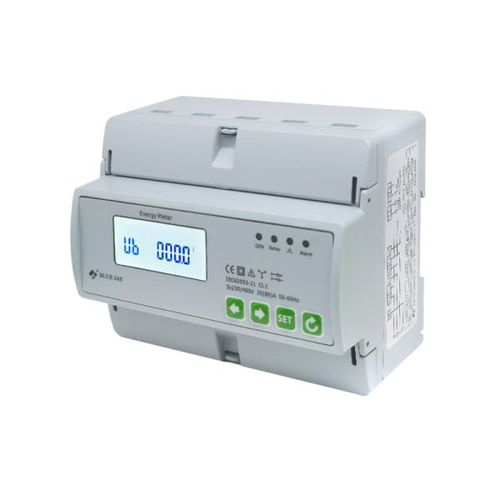

Three-phase electric energy meter DEM-7M3D

DIN railRS-485prepaid

DEM-7M3D 3 phase din rail meter is a 7M (7 Modules width Din-rail) energy meter, the maximum load can be directly connected to 80A current. Built-in interfaces provide pulse and RS485 Modbus RTU outputs. Basic function: Basic parameters & 4-quadrant energy measuring Optional Function: Max demands, Multi-tariffs & RTC measuring, prepaid functions, wireless function, and Remote control. The DEM-7M3D din rail 3 phase energy meter is specifically designed to cater to the power monitoring requirements of industrial and mining systems, public facilities, and smart buildings within the Internet of Things (IoT) smart instrument series. This prepaid energy meter incorporates RS485 communication capabilities, allowing for remote data transmission via 4G wireless communication, thereby reducing user communication network construction costs and transformation time. Notable features of the 3 phase KWH meter din rail include its compact size, reliable communication, extensive transmission range, and straightforward installation. This 3 Phase Din Rail Meter is proficient in measuring a comprehensive range of power parameters, encompassing single and three-phase currents, voltages, active and reactive powers, as well as electric energy. Its capacity to measure, count, and analyze electrical parameters in diverse areas makes it a versatile solution. The wireless data transmission functionality simplifies the process of monitoring, collecting, and managing electricity consumption, enhancing user convenience.
