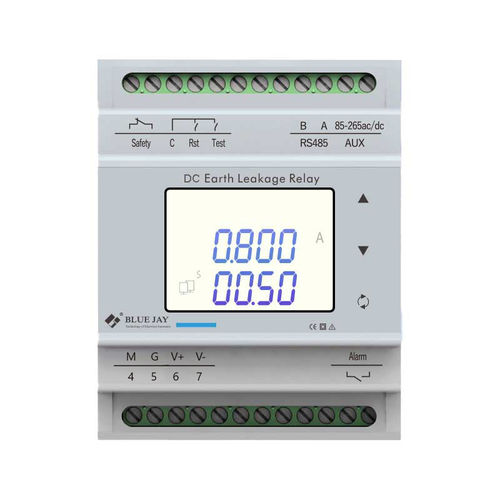

Earth-leakage protection relay ELR-4MD

currentDCAC/DC

The ELR-4MD DC Earth Leakage Relay is an advanced protection device designed to enhance the safety and reliability of electrical systems. With a hall effect current sensor (HCT), it continuously monitors the residual current in the busbars or branches of the DC system. When the residual current exceeds the preset threshold, the relay promptly outputs an alarm signal, ensuring early detection of potential faults. Equipped with alarm function, the ELR-4MD ensures that alarm signals remain clearly indicated until received the reset signal, facilitating easy fault diagnosis and troubleshooting. ELR-4MD is critical for preventing equipment damage, minimizing downtime, and safeguarding personnel against electrical hazards. • 2XSPDT relay outputs; • Hall current sensor measurement; • Remote test/rest connections; • Standard 35mm din rail mounting; • RS485 Modbus communication; • Adjustable trip levels and time delay.
