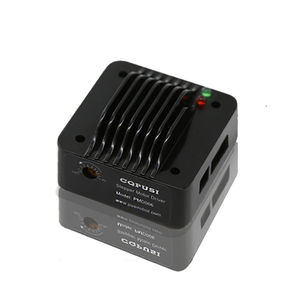

Microstepping motor controller PMC006A4S
DCtwo-phaseintegrated

microstepping motor controller
microstepping motor controller
Add to favorites
Compare this product


Characteristics

AC/DC
DC, two-phase
Motor type
microstepping
Other characteristics
integrated, RS-232
Input/output
digital input, analog input, digital output
Input voltage

Max.: 5 V

Min.: 0 V

Current

4 A

Description

PMC006A4S is a kind of miniature integrated stepper motor microstepping controller, which can be directly installed in the rear of 42/57 etc series stepper motor. The series controller is controlled by RS232 bus. It is easy to achieve industrial control network of as many as 120 nodes by using PMC006A4S controller, which would have excellent noise suppression and excellent motion smoothness. PMC006A4S provides a simple and rich set of control commands, which not only greatly simplifies the complexity of the upper layer control system, but also maximally reserves flexibility of control, and is especially suitable for various industrial applications that require low vibration, high precision and wide voltage range. Host - PC,PLC,MCU Support motor - 2-phase stepper motor The development environment - VC C# Labviwe VB Linux Python The power supply voltage - DC 9-36V Output Current - DC 4A Microstepping - 0/256 adjustable Temperature - -20℃-80℃ Maximum pulse frequency - 16K Durability - Over 20,000 hours
