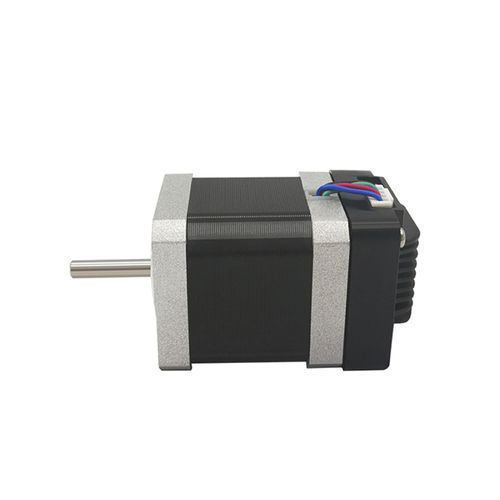

Stepper motor PMC006A4S

DC12 V24 V

PMC006A4S is a kind of miniature integrated stepper motor microstepping controller, which can be directly installed in the rear of 42/57 etc series stepper motor. The series controller is controlled by RS232 bus. It is easy to achieve industrial control network of as many as 120 nodes by using PMC006A4S controller, which would have excellent noise suppression and excellent motion smoothness. PMC006A4S provides a simple and rich set of control commands, which not only greatly simplifies the complexity of the upper layer control system, but also maximally reserves flexibility of control, and is especially suitable for various industrial applications that require low vibration, high precision and wide voltage range. Host - PC,PLC,MCU Support motor - 2-phase stepper motor The development environment - VC C# Labviwe VB Linux Python The power supply voltage - DC 9-36V Microstepping - 0/256 adjustable Maximum pulse frequency - 16K Durability - Over 20,000 hours The input IO function - Emergency stop input, brake control, digital input/output, analog input, factory reset, 5V output The input specifications - Digital input voltage: 0-5v Analog speed regulation input voltage: 0-5v Emergency stop input voltage: 0-5v
