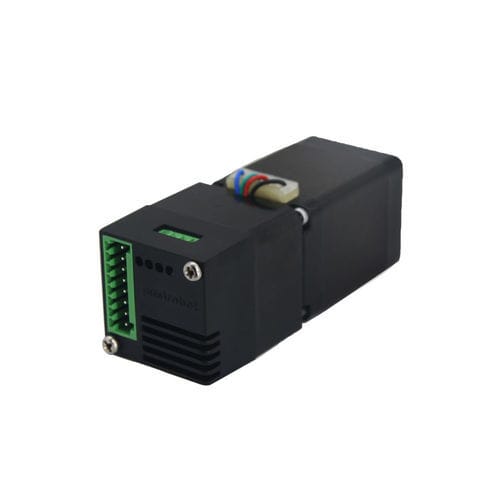

DC motor stepper24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- stepper
- Voltage
- 24 V, 12 V, 9.6 V, 18 V, 14.4 V, 21.6 V, 10 V, 20 V, 15 V, 16 V, 10.8 V, 19.5 V, 9 V
- Applications
- industrial
- Other characteristics
- NEMA, CANopen
- Torque
0.17 Nm, 0.26 Nm, 0.29 Nm
(0.1254 ft.lb, 0.1918 ft.lb, 0.2139 ft.lb)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
Host -
PC,PLC,MCU
Support motor -
2-phase stepper motor
The development environment -
VC C# Labviwe VB Linux Python
The power supply voltage -
DC9-28V
Microstepping -
0/128adjustable
Encoder type -
incremental
Encoder resolution -
Optional 200-2000,software 4 times frequency processing (commonly used 1000)
Maximum pulse frequency -
200K
Dimension -
28mm*28mm
Durability -
Over 20,000 hours
The input
IO function -
Emergency stop input, brake control, digital input/output, analog input, factory reset, 5V output
The input specifications -
Digital input voltage: 0-5V
Analog speed regulation input voltage: 0-3.3V
Emergency stop input voltage: 0-24V
Control mode
Control mode -
Position mode, speed mode, PV mode, PP mode, PVT mode, analog speed regulation, analog positioning, synchronous positioning
Mode switching -
Specified instruction switching
