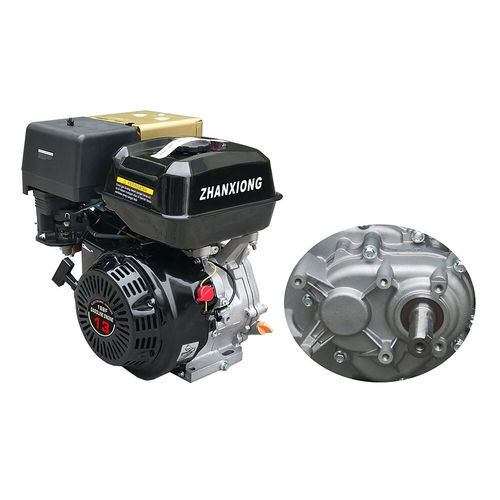

Gasoline engine F seriessingle-cylinderoverhead valveair cooling
Add to favorites
Compare this product
Characteristics
- Type
- gasoline
- Number of cylinders
- single-cylinder
- Technology
- overhead valve
- Cooling system
- air cooling
- Other characteristics
- 4-stroke
- Power
7.6 kW, 8.3 kW, 8.8 kW
(10.33 hp, 11.28 hp, 11.96 hp)- Torque
Max.: 52 Nm
(38.353232 ft.lb)Min.: 21 Nm
(15.488805 ft.lb)- Rotational speed
1,800 rpm, 3,600 rpm
(11,309.7336 rad.min-1, 22,619.4671 rad.min-1)- Displacement
390 cm³, 420 cm³, 460 cm³
(13.187 US fl oz, 14.202 US fl oz, 15.554 US fl oz)- Tank volume
6 l
(1.6 gal)- Weight
Max.: 34 kg
(74.96 lb)Min.: 28 kg
(61.73 lb)- Length
475 mm
(18.7 in)- Width
440 mm, 470 mm
(17.3 in, 18.5 in)- Height
510 mm
(20.1 in)
Description
ENGINE TYPE: single cylinder, four stroke, forced air cooling, overhead valve
CYLINDER BORE × STROKE (MM): 88 × 64、90 × 66、92 × 69
IDLE SPEED (RPM): 1440 ± 140
COMPRESSION RATIO: 8.5:1, 8.8:1, 8.8:1
VALVE CLEARANCE (MM): intake valve 0.10 ~ 0.15 / exhaust valve 0.15 ~ 0.20
SPARK PLUG GAP (MM): 0.7 ~ 0.8
FUEL CONSUMPTION RATE (G / KW. H): ≤ 374
OIL CAPACITY (L): 1.1
STARTING MODE: manual / electric start
LUBRICATION METHOD: splash lubrication
IGNITION MODE: transistor ignition
ROTATION DIRECTION: counterclockwise (viewed from the output shaft end of Crankshaft)
