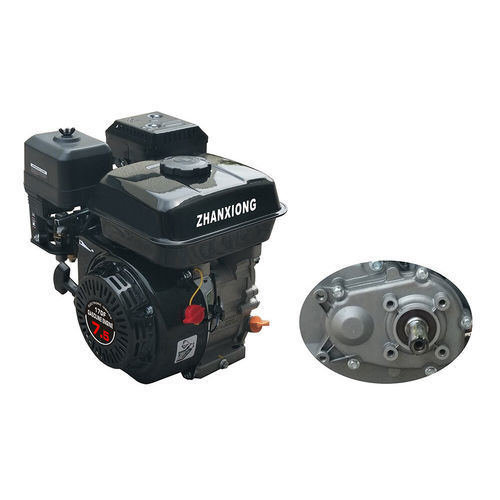

Gasoline engine F seriessingle-cylinderoverhead valveair cooling
Add to favorites
Compare this product
Characteristics
- Type
- gasoline
- Number of cylinders
- single-cylinder
- Technology
- overhead valve
- Cooling system
- air cooling
- Other characteristics
- 4-stroke
- Power
3.8 kW, 4 kW, 4.2 kW
(5.167 hp, 5.438 hp, 5.71 hp)- Torque
Min.: 10.5 Nm
(7.7444 ft.lb)Max.: 24 Nm
(17.7015 ft.lb)- Rotational speed
1,800 rpm, 3,600 rpm
(11,309.73 rad.min-1, 22,619.47 rad.min-1)- Displacement
196 cm³, 212 cm³, 223 cm³
(6.628 US fl oz, 7.169 US fl oz, 7.541 US fl oz)- Tank volume
3.6 l
(1 gal)- Weight
14 kg, 15 kg, 16 kg, 17 kg
(30.86 lb, 33.07 lb, 35.27 lb, 37.48 lb)- Length
405 mm
(15.9 in)- Width
375 mm
(14.8 in)- Height
385 mm
(15.2 in)
Description
ENGINE TYPE: single cylinder, four stroke, forced air cooling, overhead valve
CYLINDER BORE × STROKE (MM): 68 × 54、70 × 55、70 × 58
IDLE SPEED (RPM): 1440 ± 140
COMPRESSION RATIO: 8.5:1, 8.5:1, 8.6:1
VALVE CLEARANCE (MM): intake valve 0.10 ~ 0.15 / exhaust valve 0.15 ~ 0.20
SPARK PLUG GAP (MM): 0.7 ~ 0.8
FUEL CONSUMPTION RATE (G / KW. H): ≤ 395
OIL CAPACITY (L): 0.6
STARTING MODE: manual / electric start
LUBRICATION METHOD: splash lubrication
IGNITION MODE: transistor ignition
ROTATION DIRECTION: counterclockwise (viewed from the output shaft end of Crankshaft)
