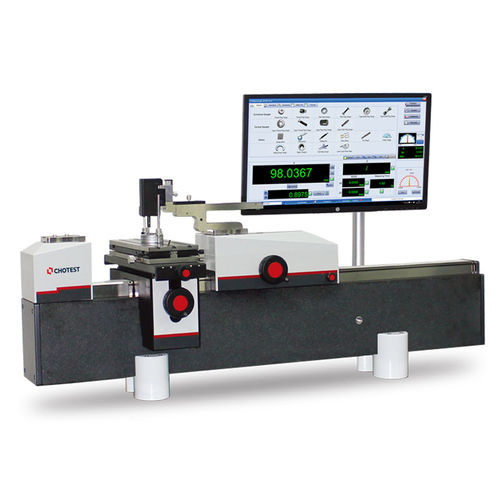

Diameter measuring machine SJ5100-UP300

angledistanceposition

Item No.: SJ5100-UP300 Product name: Universal length measuring machine Inside measuring range: 0.7~900mm Outside measuring range: 0~1040mm Resolution: 0.01μm Repeatability: 0.1μm Max thread pitch: 250mm(Plug)/200mm(Ring) Measuring force range: 0.1, 0.3, 0.5, (1~10)N continuously adjustable by hand Manufacturer: Chotest Technology Inc. Functions 1. Measure gauge blocks, thread gauges, plain gauges, Taper thread/plain gauges, pin gauge, caliper, spline gauges, setting bars, snap gauges, internal/external micrometers, feeler gauges, Dial indicators, dial bore gauge, dial test gauges, internal micrometer three points, etc. 2. Measure various gauges according to GB, ISO, BS, ANSI, DIN, JIS, API standards. With comprehensive and professional standards in database, it meets requirements of most customers. 3. Conform to a variety of verification regulations & measuring standards. All test results are generated according to relevant regulations and standards. 4. User-friendly software. 5.With centralized database management for measuring records, the operator can query and manage the measuring records according to object type , testing institution, manufacturing number, inspector, submitted institution, equipment number, inspection date and effective date. 6. Can print multiple selected test records or test certificates from database at once time. 7. Can export test data to Word, Excel, AutoCAD (optional) files. 8. Data backup and restore. 9.Support user-defined template of report. 10. Support user-defined program and tolerance.
